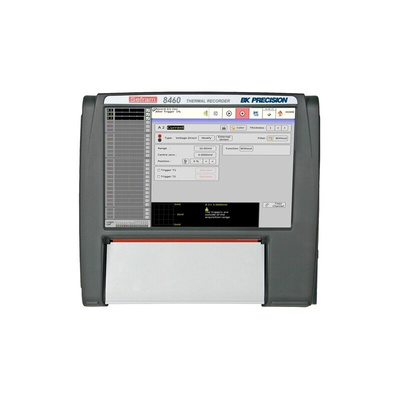

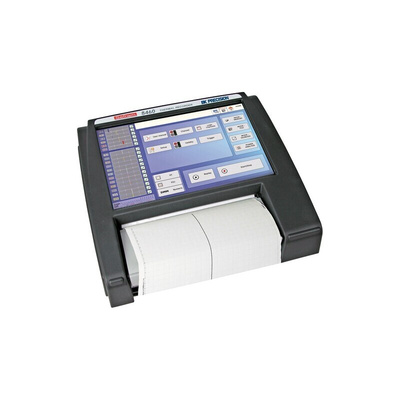

The Sefram 8460 is a High-Speed Thermal Paper Data Acquisition Solution with 270 mm paper that enables you to acquire multiple parameters: Voltage, Current (with shunt or Clamp), Temperature (thermocouples), measurements on sensors (e.g. 0-10V","4-20 mA), etc.. You can set up your own channel configuration from the 4 input boards available: 6ch Universal Board, 6ch Universal High Voltage board, 6ch Strain Gauge board and 12ch Multiplexed boards. With suitable channel configuration you can record from 6 up to 36 channels and 16 logical inputs. Long term measurements with a sampling rate of 1MHz are possible by taking full advantage of the 500GB internal hard disk memory. With a special integrated function of Power Analysis you can record all your parameters on a Single-Phase and Three-Phase network (50Hz, 400Hz and 1kHz). This Data Acquisition Solution can be remotely controlled by USB, Ethernet or WiFi connection and the results can analysed on license-free software from Sefram.
Sefram 8460 combines autonomy, power and simplicity to provide you the right answer for your recording needs.
Common features:

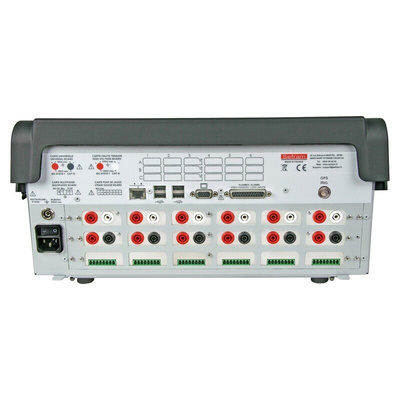

Interfaces : 4 x USB, Ethernet, VGAVarious measurement functionsRemote controlSupplied with licence free Sefram Viewer software for data transfer and analysisSafety: 600V CAT III (depending of boards)6 isolated input universal board:6 isolated analogue channels14 bit, 1 Ms/s, Bandwidth: 100kHzDC, RMS AC+DC Voltage (+-500V)Frequency, Thermocouples6 isolated high voltage board:6 isolated high voltage analogue channels14 bit, 1 Ms/s, Bandwidth: 26kHzDC, RMS AC+DC Voltage (+-1000V)Frequency6 isolated differential input board - Strain GaugeMeasurement of strain gauge bridges (4 and 6 wires) and half-bridgeVoltage up to 50V, thermocouples16 bit, 100ks/s, bandwidth 18kHz12 channels multiplexed boardVoltage up to 50V AC, DCPt100, thermocouples16 bit, 5ks/s, bandwidth 1kHz
TFT panoramic LCD touch screen (15\"4)6 to 36 analogue channelsUp to 3 measurement boards16 logical channels270mm thermal paper printer128 Mword memory, with segmentsInternal hard disk : 500 GIntuitive man-machine interfacePower Analysis function
Options:
IRIG boardWiFi interface
Options
a href=\""/web/p/products/2320470\""2320470/a - Multiplexed card 12 channelsa href=\""/web/p/products/2320468\""2320468/a - Universal input card 6 channelsa href=\""/web/p/products/2320459\""2320459/a - High Voltage Universal input card 6 channelsa href=\""/web/p/products/2320471\""2320471/a - Strain Gauge Card 6 channelsa href=\""/web/p/products/2320453\""2320453/a - WiFi optiona href=\""/web/p/products/7918071\""7918071/a - External 16 isolated logical channel adaptera href=\""/web/p/products/1259523\""1259523/a - Special cord for logic inputs (banana)a href=\""/web/p/products/2320474\""2320474/a - 19\"" rack mounting kit
Factory Options (must be ordered with the main unit)
a href=\""/web/p/products/2320472\""2320472/a - GPS card option - internal clock synchronization with an GPS time (only possible GPS or IRIG)a href=\""/web/p/products/2320473\""2320473/a - IRIG card option - internal clock synchronization with an IRIG time (only possible IRIG or GPS)a href=\""/web/p/products/2320469\""2320469/a - High Impedance option Z = 10Mohm. One needed for each input boarda href=\""/web/p/products/2320466\""2320466/a - 2 TB Hard drive option
Included: main adaptor 100/240V, manual (CD-ROM), set of red and black cables, aligator clips, quick banana plug
Instruction sheet - 8460/010"
