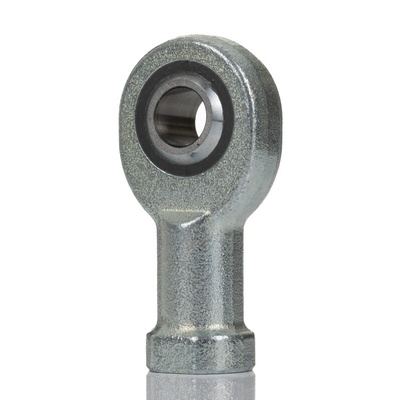

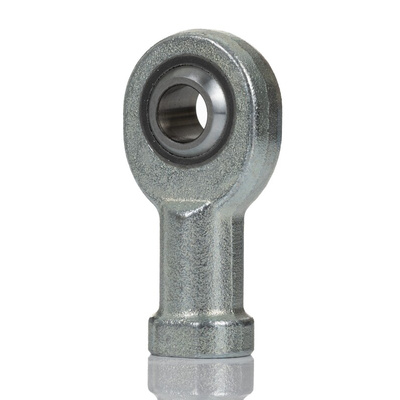

SIKB 10 F, SKF SIKB M10 Female Steel Rod End, 10mm Bore, 29mm Long, Metric Thread Standard, Female Connection Gender

SKF Rod End, 10mm Bore Diameter, 59mm Housing Length, Steel Material, 13° Tilt Angle - SIKB 10 F

Keep joints in your rotating system smooth and supported with this rod end from SKF. It features a sliding layer made of steel and PTFE FRP that stops wear and corrosion in their tracks, so it doesn't need any maintenance. You can trust it to bear up in light-duty and medium-duty applications, as it handles dynamic loads up to 9.8kN and static loads up to 14.3kN. A standard M10 thread size makes the unit a breeze to fit with commonly used parts.

• Bearing steel inner ring is resistant to wear and corrosion
• Angle tilt of 13° tolerates misalignment for hassle-free operation

Applications

• Aviation engineering
• Robotics systems
• Manufacturing equipment

The SKF Rod ends with a female thread has 10mm bore diameter. It has wrench size 17 mm.

What's the difference between steel and bearing steel?

Width inner ring 14 mm
Width head 11.5 mm
Angle of tilt 13 Deg

Bearing steel is heat-treated and has a higher carbon content than regular steel, so it's more durable. This means it can take on more demanding jobs with minimal wear and tear.

What size wrench do I need to tighten this rod end in place?

You can use a standard 17mm wrench to ensure your rod end is securely fastened in place.

Datasheet - SIKB 10 F

Catalogue - Spherical PlainBearings and Rod Ends
