SSA-EB1PLGR-12ECQ8, Banner SSA Series Twist Release Emergency Stop Push Button, Panel Mount, 30mm Cutout, 1NO, 2NC, IP65

Banner Emergency Stop Push Button, Illuminated Base, 40mm Button Diameter - SSA-EB Series - SSA-EB1PLGR-12ECQ8

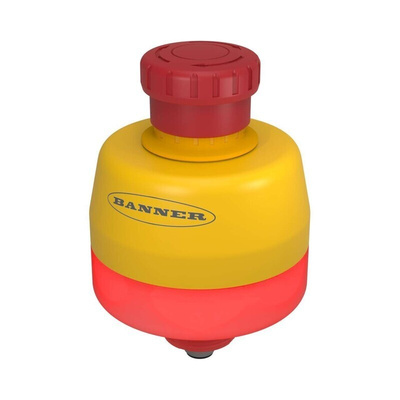

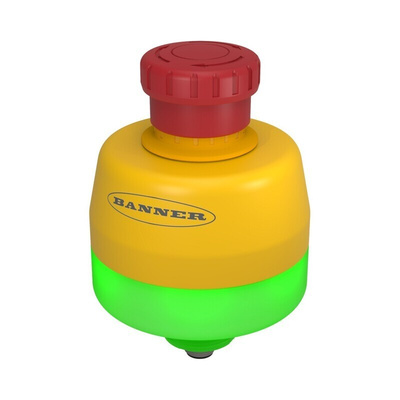

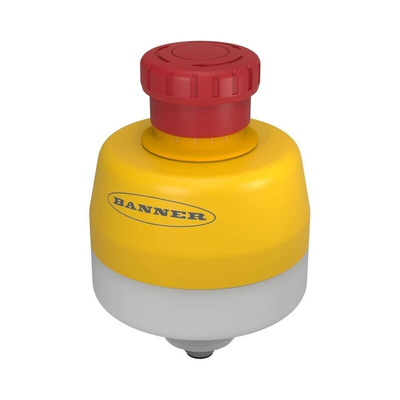

To avoid injuries during dangerous processes, wire up this emergency stop push button from Banner. Simply press on its round actuator to instantly de-energise connected equipment, limiting exposure to hazardous machine parts. By twisting the button to release it, you can restart the circuit in a jiffy. To help you monitor the status of your system, the component's base lights up green when it's armed and flashes red throughout activation. The push button has an IP65 rating, indicating it's dust-tight and withstands low-pressure water jets from any direction.

Features & Benefits

• Low height of 120mm to save space in your setup
• Tough polycarbonate housing holds its own against impact
• 8-pin M12 connector is compatible with common industrial components
• 2A contact rating at 30V DC means it's safe to use in powerful electrical systems

Applications

• Manufacturing industry
• Security systems
• Military equipment
• Conveyors

What's the operating temperature range of this emergency stop push button?

It tolerates ambient temperatures from -25°C to +55°C, so it's ideal for applications in demanding settings.

Datasheet - SSA-EB1PLGR-12ECQ8

Line Drawing - SSA-EB1PLGR-12ECQ8
