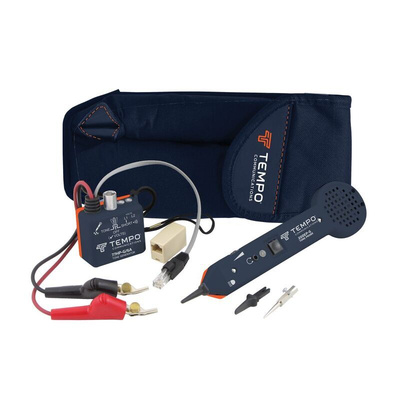

701K-G/6A (BOX), Tempo 701KG/6A Tone and Probe Kit, 2 Tone, 960Hz Tone Frequency

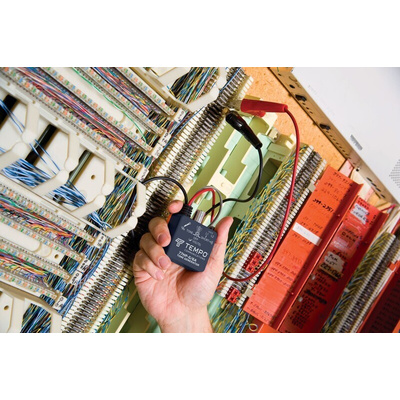

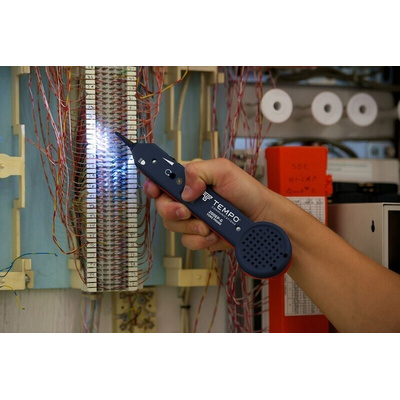

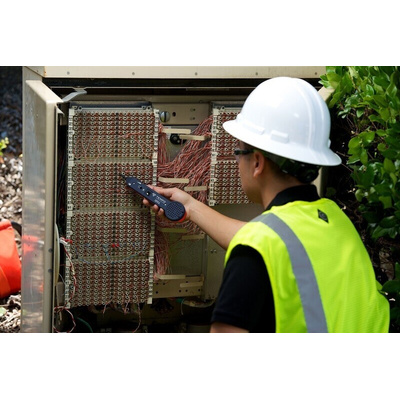

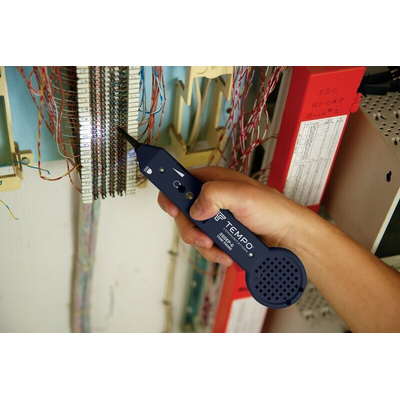

The Tempo fully upgraded version of our powerful 701K industry-standard professional tone and probe tracing kit, including ABN clips. The tone and probe kit offers superior tracing for low voltage applications such as telephone, data, and security alarm wiring. Essential equipment for the internal wiring technician, it provides the ability to check voltage on wire pairs as well as generate a tagging tone along the wire which is then picked up by the tracing probe.

Gain 30 db
Input impedance 100 MΩ
Metal tip resistance 0 Ω
Plastic tip resistance 300 Ω
Voltage protection 150 VDC
Battery life nominal >50 hours

Choice of plastic or metallic probe tip
Enhanced voltage protection in all modes
Ease of operation
Reliability
Large speaker for noisy environments
