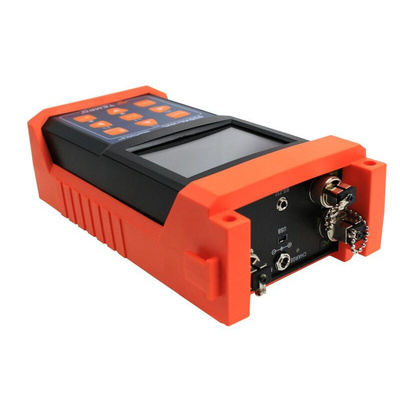

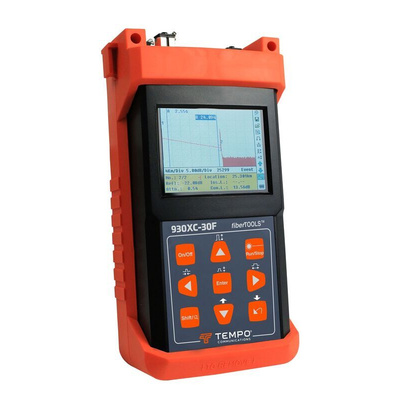

930XC-30F (SC/APC), Tempo 930XC-30F OTDR Single Mode Optical Time Domain Reflectometer

Handheld Optical Time Domain Reflectometers (OTDRs)

The Tempo time domain reflectometer has one button test functions. Start measurements with the push of one button it automatically sets test parameters for optimum test results. Graphical interface and easy to read, even in low or bright lighting conditions. Up to 38 dB dynamic range, probe longer cables and see smaller reflections. The Macrobend analysis locates troublesome fibre losses at 1550 nm and has long life battery which ork longer without recharge up to 8 hours continuous use.

Wavelength 1310/1550/1625 nm
Dynamic range 38/37/37 dBa
Event deadzone 1 mb
Attenuation deadzone 4.5 mb
Selectable ranges 0.3, 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 240km
Reflection detect accuracy ±4 dB
Attenuation detect accuracy ±0.05 dB/dB
Measurement data storage 1,000 test curves
Data transmission USB port
Visual fault locator -3dBm, 650nm
Optical power meter InGaAs

Operating temperature -10° to 50° C
Storage temperature -20° to 60° C
Relative humidity 0 to 95%
Dimensions 196mm x 100mm x 64mm
Compliance CE, FCC, UL
OPM wavelengths 850, 1300, 1310, 1490, 1550, 1625 nm
