EVAL1ED3890MX12MTOBO1, Infineon Evaluation Board For EiceDRIVER Half-Bridge Driver for Drives, EV Charger, Motor Control & Drives, UPS

Evaluation board for EiceDRIVER™ X3 single-channel highly flexible isolated gate driver family

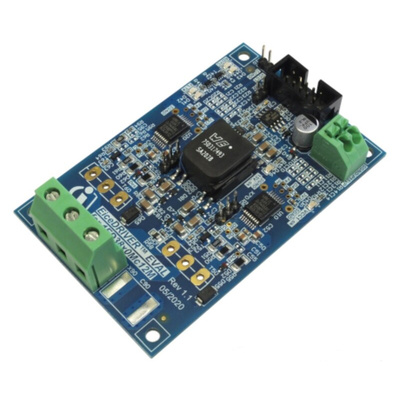

The EVAL-1ED3890MX12M is in half-bridge configuration with two gate driver ICs (1ED3890MX12M) to drive power switches such as IGBTs, MOSFETs and SiC MOSFETs. The switch type can be freely chosen. The board has a size of 85 x 85 x 15 mm without any power switch assembled.
The board is best suited to leverage the highly configurable X3 Digital (1ED38xx) family with its rich feature-set. Configuration is performed via I2C bus.
The evaluation board is recommended to be used with a companion microcontroller evaluation board EVAL-1ED38X0DCT to optimize the configuration process.

Summary of Features

• I2C bus for parameter adjustment, state and fault feedback, ADC measurements and condition monitoring


• Adjustable Clamp/Clamp driver/ADC pin


• Two precise VCEsat detection (DESAT2) circuit with fault output, adjustable leading edge blanking time and individually adjustable trigger voltages, filter times


• Two-level turn-off (TLTO) with adjustable slopes, plateau time and plateau level


• Adjustable soft turn-off after desaturation detection


• Adjustable hardware UVLO with hysteresis for IGBTs and MOSFETs on both VCC2 and VEE2 rails with active shutdown


• ADC measurement of internal parameters: supply voltages and internal temperature


• 40 V absolute maximum output supply voltage


• ± 9 A typical sourcing and sinking gate current capability


• High common-mode transient immunity CMTI = 200 kV/μs


• Small space-saving DSO-16 fine-pitch package with large creepage distance ( >8 mm)


• Gate driver safety certification according to UL 1577 and VDE 0884-11

Benefits

• Enables fast design cycles due to low external component count and still offers adjustable DESAT with Soft-off functionality


• Best-in-class DESAT accuracy: perfect for all applications requiring reliable short-circuit protection (including SiC MOSFET and IGBT7)


• Enables predictive maintenance and rapid prototyping


• The precise threshold and timings, combined with UL 1577 and VDE 0884-11 certification enable superior application safety


• Perfect fit for all applications requiring a reliable DESAT protection, benefit from an active Miller clamp and prefer small PCB space requirements

Datasheet - EVAL1ED3890MX12MTOBO1
