REF22KGPDINVEASY3BTOBO2, Infineon REF-22K-GPD-INV-EASY3B for FP100R12W3T7_B11, 1ED3240, IMBF170R1K0M1, XMC4800, XMC4300 for Industrial Motor

Combining our technology of IGBT7, current sensor, gate driver and control in one system

This reference design is an industrial motor drive suitable for the drive of pumps, fans, compressors, conveyor belts and others. It includes the Easy™3B power module FP100R12W3T7_B11, TLI4971 current sensors, 1ED3240 gate driver, IMBF170R1K0M1 SiC-MOSFET as well as XMC4800 and XMC4300 microcontrollers. With all the ingredients of a general-purpose drive it allows a quick evaluation of our technologies as well as the interaction between the products.
Summary of Features

• 22 kW nominal power


• Direct operation on 3-phase grids


• Base-plate-less EasyPIM™3B module


• TrenchstopTM IGBT7 technology


• Efficient 2L-SRC gate drive


• For various industrial drive types

• Product evaluation in application


• Pre-tested, re-usable design


• Lower conduction losses


• Increased energy efficiency


• Superior power density


• Faster time to market

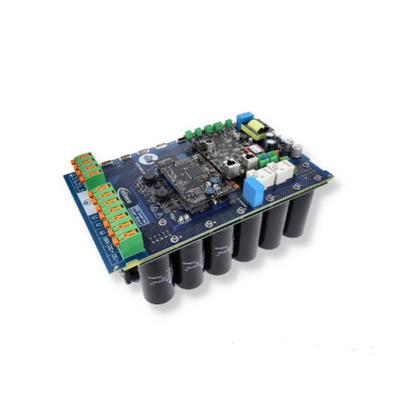

REF-22K-GPD-INV-EASY3B
Board Type: Reference Board
Dimensions: 220x400x170 mm
Family: IGBT Modules
Input Type: AC
Pout max: 22000 W
Product Description: Pre-tested and validated general purpose drive reference design for applications like pumps, fans, compressors, conveyor bels, combining Infineon's state-of-the art technologies such as IGBT7, current sensor, gate driver and control in one system.
Product Name: REF-22K-GPD-INV-EASY3B
Qualification: Industrial
Topology: 3-Phase Motor;3-Phase - 2 Level

Datasheet - REF22KGPDINVEASY3BTOBO2
