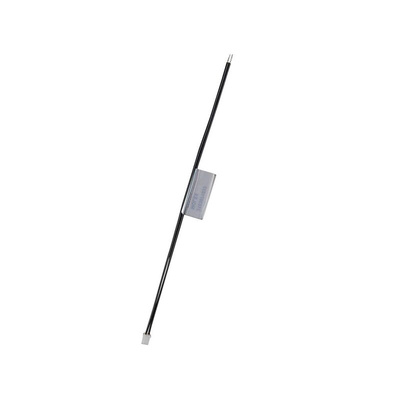

218397-1033, Molex 3 Way Female Pico-SPOX to 3 Way Unterminated Wire to Board Cable, 300mm

Molex Wire-to-Board Cable, Phosphor Bronze Contacts, 2.5A Current Rating Per Contact - 218397 Series - 218397-1033

For a simple way to connect a circuit to your PCB, hook up with this wire-to-board cable from Molex. Its connectors come pre-assembled to save on installation time. One end features a female Pico-SPOX and the other is an unterminated pigtail. The complete unit is 300mm long, giving you plenty of cable to play with when prototyping or manufacturing. As there are 25 units in each bag, you'll have enough on hand for complex builds.

Features & Benefits

• Energy efficient, as each contact only draws up to 2.5A of current
• Phosphor bronze contacts provide good conductivity and corrosion resistance
• Suits demanding conditions with an operating temperature range between -10°C and +105°C

Applications

• Automotive electronics
• Telecommunications networks
• Industrial automation

How much voltage can this wire-to-board cable handle?

You can safely use it for applications up to its maximum voltage rating of 250V.

Datasheet - 218397-1033

Schematic - 218397-1033
