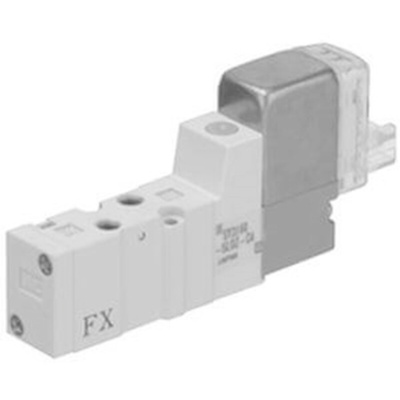

SYJ3120T-5LOZ-M3-Q, SMC 1 Solenoid Valve - Solenoid Metric M3 SYJ Series

The SMC 5 port solenoid valve designed in a manifold or used as a single valve, this small profile increases design flexibility and minimizes space requirements. The valve utilizes a low power (0.5 watts standard) pilot solenoid design, which dramatically reduces thermal heat generation. This improves performance, decreases operating costs, and allows for direct control by PLC output relays.

Fluid air
Operating pressure range (MPa) 0.15 to 0.7
Effective area mm 2 (Cv) 5 port body ported 0.9 (0.05)
5 port base mounted w/sub-plate 1.8 (0.1)
Ambient & fluid temp max 50°C

Datasheet - SYJ3120T-5LOZ-M3-Q
