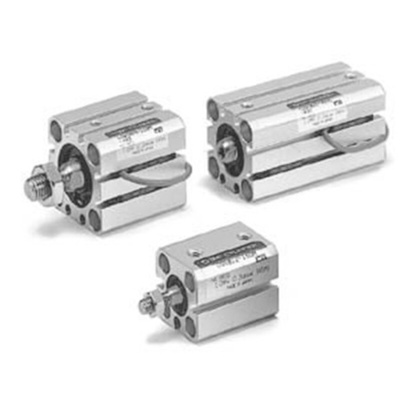

CDQSB16-35DCM, SMC Pneumatic Cylinder - 16mm Bore, 35mm Stroke, CQS Series, Double Acting

The SMC CQS single rod, double acting version of the compact cylinder is available for those small bore cylinder application where saving space is a concern. It used both switch capable and non-switch capable body style and has auto switch mounting allow for flexible designing requirements. The long stroke version incorporate a wear band and thicker piston to handle the increased bearing need of the longer stroke.

Ambient and fluid temperature ranges from -10 to 60°C (with auto switch)
Reduction in labour for design
Reduction of installation space

Datasheet - CDQSB16-35DCM
