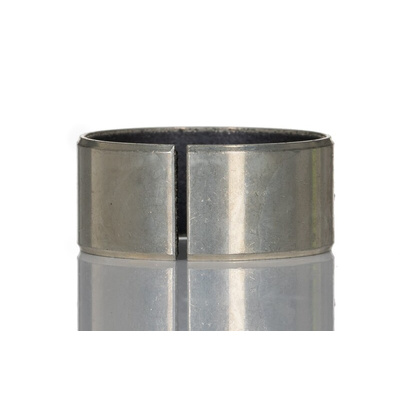

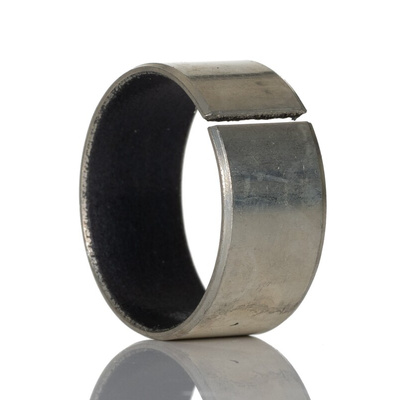

SKF PCM 202210 E 20mm Bore Plain Bearing, 45.5kN Radial Load Rating, 22mm O.D

SKF Plain Bearing, PTFE Composite Body, 48kN Static Load Rating, 20mm Bore, 22mm OD - PCM 202210 E

Need a slim support element for your system's loads? Turn to this SKF plain bearing. It has a wall thickness of just 2mm, so takes up minimal space and calls for low clearance, but carries dynamic loads up to 15.3kN. This means it helps your equipment sail through intense handling tasks. Thanks to its PTFE running layer, the component works without friction to cut excessive wear to itself or the shaft out of the equation. Reliably good heat dissipation means your system runs cool.

Features & Benefits

• Durable sheet steel backing for effective impact resistance, so safe to use in demanding settings
• Tolerates sliding movement up to 2m/s, so keeps up with swivelling and stops misalignment damage
• Self-lubricating body removes the need for manual greasing
• Performs reliably in extreme temperatures from -200°C to +250°C

Applications

• Material handling
• Mining equipment
• Textile manufacturing

Can I use this product in a wet application?

Yes, the bearing's tin-plated backing shrugs off corrosion caused by moisture. This makes it a safe bet for applications that use a limited amount of water.

Datasheet - PCM 202210 E

Catalogue - Bushings, Thrust Washers and Strips
