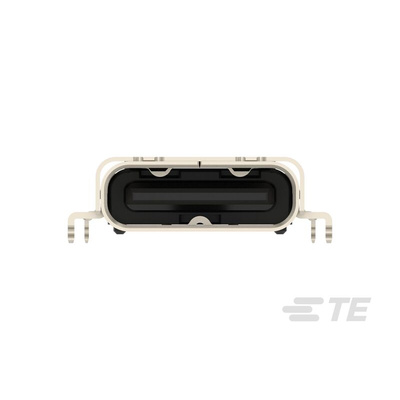

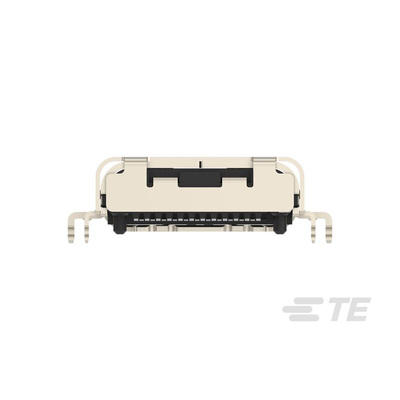

2388749-1, TE Connectivity Right Angle, SMT, Socket Type Standard 4.0 USB Connector, Разъем

The TE Connectivity standard USB connector uses 4.0 USB version with single port. It has right angle body orientation and uses liquid crystal polymer for housing. Used in power and signal applications.

Grounding options PCB ground
Ground component type grounding contact
Number of mounting legs 24
Number of ports 1
Number of positions 24
Connector system board-to-component
Shell plating finish bright
Shell plating material nickel
Connector & contact terminates to printed circuit board
Soldering temperature maximum 265 °C
Mating cycles maximum 10000

Datasheet - 2388749-1

Schematic - 2388749-1
