SM20WL3S26, Souriau Sunbank by Eaton Souriau Circular Connector Contact, Wire Size 22 → 20 AWG, Контакты разъема

Crimp Contacts

High quality stamped pins and sockets made from copper alloy and plated gold over nickel in contact area. Cable insulation range for 26//24 awg contacts is 0.89-1.57mm diameter, and for 22//20 awg contacts 1.17-2.08mm.

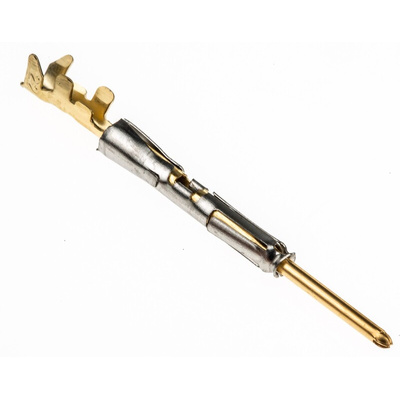

Souriau Pin Contact

The Souriau SC series male pin contact has a contact size of 20 and wire size ranging between 20AWG and 22AWG. This contact is made of copper alloy and has gold over nickel plating. It can be used with a plastic Sealok connector.
Sealok - Plastic
Intermateable, interchangeable and technically comparable with MIL-C-26482 series 1 connectors. The Sealok range offers an affordable alternative to traditional metal types. It is ideal for industrial application. These connectors have a metal bayonet coupling ring for security and durability and have a built-in interfacial seal to meet IP65 sealing requirements. It is available in 6, 10, 19 and 26 way, in pin or socket configurations for cable or chassis mount. This contact is available in standard shell sizes. Two styles of back shell are also offered.

Features and Benefits

Current rating is 5A
Cable mount
Contact resistance is 15mohm
Crimp termination

Sealok - Plastic

Intermateable, interchangeable and technically comparable with MIL-C-26482 series 1 connectors, the Sealok range offers a cheaper alternative to traditional metal types. Ideal for industrial application, these connectors have a metal bayonet coupling ring for security and durability and have a built-in interfacial seal to meet IP65 sealing requirements. Available in 6, 10, 19 and 26 way, in pin or socket configurations for cable or chassis mount. Available in standard shell sizes. Two styles of backshell are also offered.

Size 20 contacts for Plastic Sealok connectors
