43025-0200, Molex, Micro-Fit 3.0 Receptacle Connector Housing, 3mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

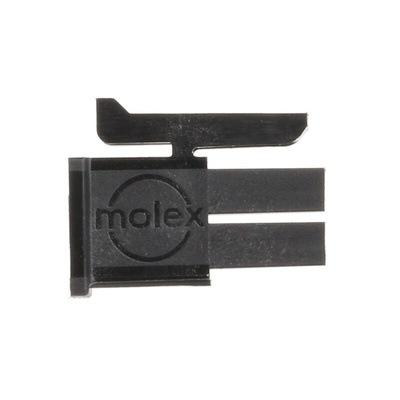

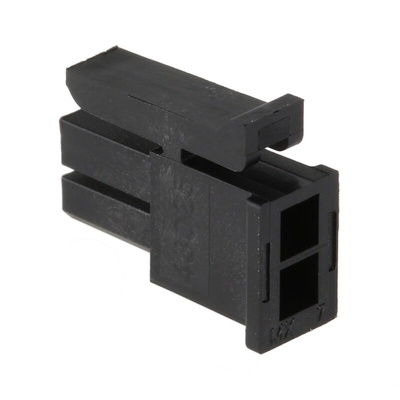

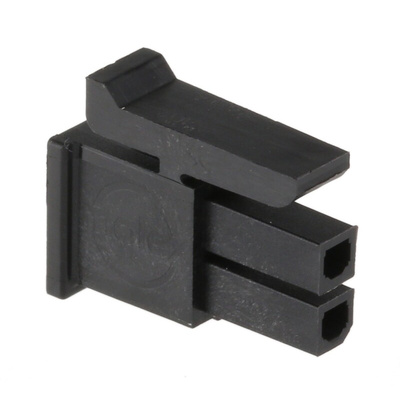

Molex Micro-Fit 3.0 Connector Housing, 2 Way, Dual Row - 43025 Series - 43025-0200

This connector housing from Molex delivers power in a compact package. It has a 3mm pitch and is well-suited to crimp connections in wire-to-wire and wire-to-board configurations. The fully isolated unit is protected from dust and dirt as well as potential damage during handling and mating. It's made from hard-wearing plastic, which offers excellent resistance to above-average wear and tear, as well as good insulation properties to prevent stray electrical current from causing damage. As this is a low-halogen material, it won't release any toxic fumes in the event of a fire.

• Fully polarised housing to prevent mismatching
• Includes positive latching to ensure a stable and highly reliable connection
• Flame retardant for improved safety during operation
• Space-saving dimensions of 3.86 (L) x 8.28 (W) x 14mm (D) for maximum packing efficiency on a PCB (printed circuit board)

Applications

• Medical technology
• Communications and networking
• Power supply
• Food and beverage industry

Can I recycle this connector housing?

This Molex receptacle is made from PET (polyethylene terephthalate) plastic which is globally recognised as a safe, recyclable material. It's also light, which reduces its transportation-related carbon emissions.

Molex Micro-Fit 3.0 Series

Datasheet

Line Drawing

43025-0200 Datasheet

Micro-Fit+ Connector Datasheet
