43025-0400, Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 4 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

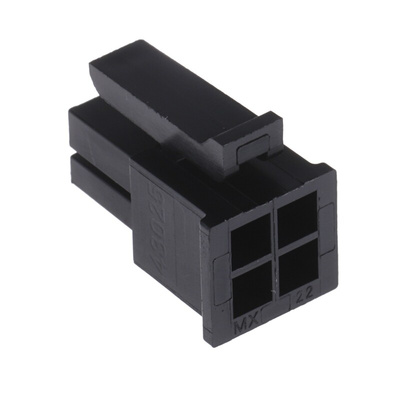

Molex Female Connector Housing, 4 Way, 3mm Pitch - Micro-Fit 3.0 Series - 43025-0400

This connector housing from Molex is designed to hold crimped terminals for ease of connection to PCBs. For versatility, it also lets you join two wires together without the need for soldering them. The contacts come with positive locking, which achieves a secure connection that won't dislodge in vibrating conditions. As this unit is fully polarised, you can safely mount it on a board without the risk of mismating or misalignment.

• Nylon body offers insulation to protect you from electrical hazards
• Broad operating temperature range between -40°C and +105°C to withstand demanding operations

Applications

• Telecommunication industry
• Manufacturing industry
• Control panels

How many conductors can this housing accommodate?

This component offers space for up to four crimped terminals so you can transmit multiple power and data signals in your system. Each contact has a maximum current rating of 5A for energy-effecient operation.
