43025-0600, Molex, Micro-Fit 3.0 Receptacle Connector Housing, 3mm Pitch, 6 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

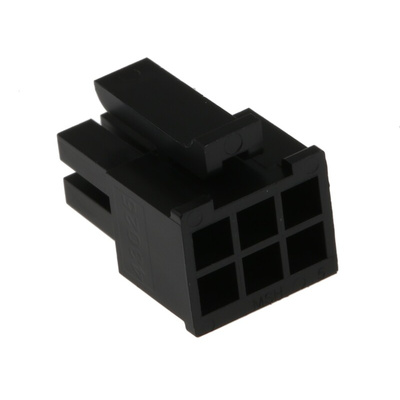

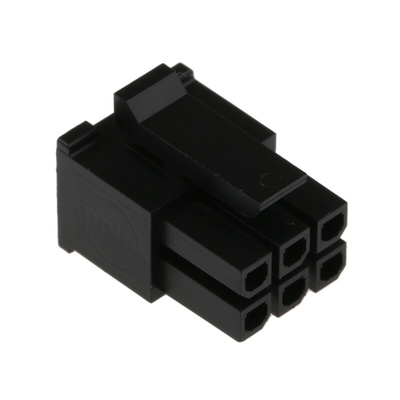

Molex Micro-Fit 3.0 Dual-Row Connector Receptacle, 6 Way, 5A - 43025 Series - 43025-0600

Looking for a way to protect and organise your circuit boards? This 6-way connector receptacle from Molex is an effective solution. It's designed to house PCB (printed circuit board) connectors that are used to join different PCBs together. A positive locking mechanism ensures a secure fit that won't come loose, so you can be sure that your connections will function reliably without interference or damage. You can use this connector for wire-to-wire and wire-to-board connections, making it a versatile choice.

• Wide operating temperature range of -40°C to +105°C for use in extreme environments
• Made of PET (polyethylene) plastic material for durability and resistance to chemicals, ensuring long-lasting performance
• Fully polarised to prevent misalignment and mismating
• Compact dimensions of 9.85 (L) x 11.56mm (W) for use in applications where space is limited
• Halogen-free to minimise the risk of toxic fumes in the event of a fire

Applications

• Household appliances
• Consumer electronics
• Industrial manufacturing

How many circuits can this product be used for?

The receptacle can house up to six separate PCB connectors, making it a convenient choice for larger-scale applications.

Molex Micro-Fit 3.0 Series
