43025-0800, Molex, Micro-Fit 3.0 Receptacle Connector Housing, 3mm Pitch, 8 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

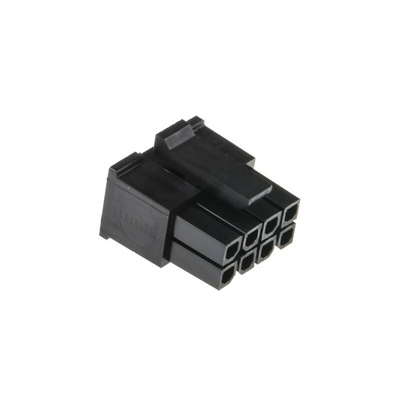

Molex Micro-Fit 3.0 Dual-Row Receptacle, 8 Way, 5A - 43025 Series - 43025-0800

Use this housing from Molex when you need an effective way to organise your PCBs (printed circuit boards). It has female slots for PCB connectors, which are arranged in a dual-row design to save you space in tight installations. The receptacle can accommodate up to eight connections at a time, offering enough versatility for larger arrangements. It's made of a PET (polyethylene) material, which has excellent impact strength, durability and chemical resistance, so you can be sure of its effective performance over a long service life.

• Wide operating temperature range of -40°C to +105°C for safe use in demanding environments
• Maximum current of 5A per contact makes the housing suitable for most everyday electrical applications
• Positive locking mechanism to ensure a secure connection
• Light weight of 0.733g to avoid adding bulk to your PCB setup

Applications

• Consumer electronics
• Industrial equipment
• Power grids

What safety features does this receptacle have?

This product is low-halogen and isn't flammable, so it won't release toxic fumes or act as a source of fuel in the event of a fire. It's also fully polarised to ensure proper matching and alignment.
