43025-1000, Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 10 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

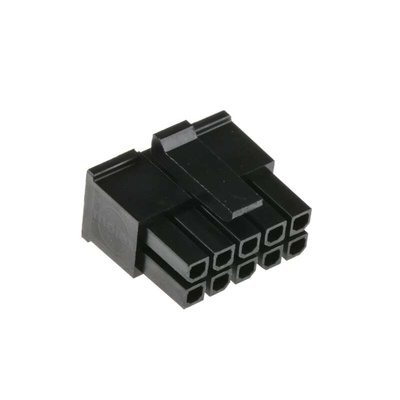

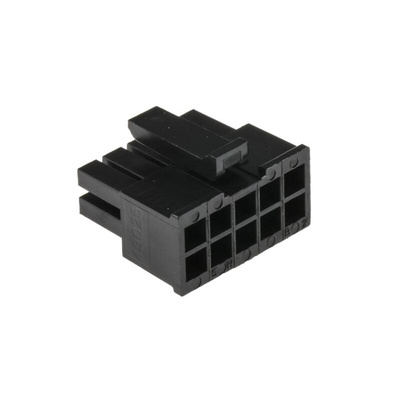

Molex Micro-Fit 3.0 Female Connector Housing, 2 Rows, 3mm Pitch - 43025 Series - 43025-1000

This female connector from Molex is used to safely link cable terminals to printed circuit boards (PCBs). It acts as a protective housing for various types of crimp terminals and has a 3mm pitch for ease of insertion. As it's made of PET (polyethylene terephthalate), this component provides reliable insulation to protect you and your equipment from electric shock and short circuits. This material also provides excellent heat resistance, ensuring the housing won't deform when used in demanding conditions. It's designed for use with the Micro-Fit 3.0 series, enabling you to build a complete PCB set-up.

• Straight body orientation for simple insertion into PCBs
• Light weight of 0.847g to prevent added strain on your equipment
• Compact dimensions of 15.85 (length) x 11.56 (width) x 14mm (depth) to fit into tight spaces

Applications

• Industrial washers and dryers
• Motorcycles and tricycles
• Photocopying machines

How do I ensure that my connectors are installed properly?

The housing is fully polarised to ensure proper insertion and prevent damage to the connectors during installation. It also features a positive locking mechanism to hold your connectors securely in place once they're inserted.

Molex Micro-Fit 3.0 Series

Datasheet

Line Drawing

Micro-Fit+ Connector Datasheet
