43025-1200, Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 12 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

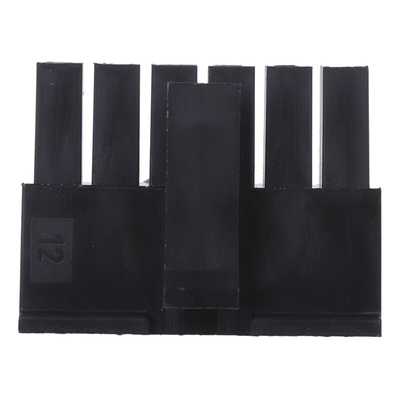

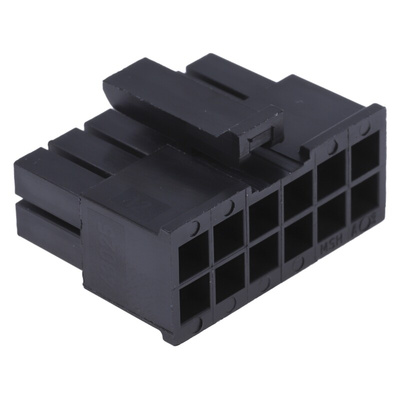

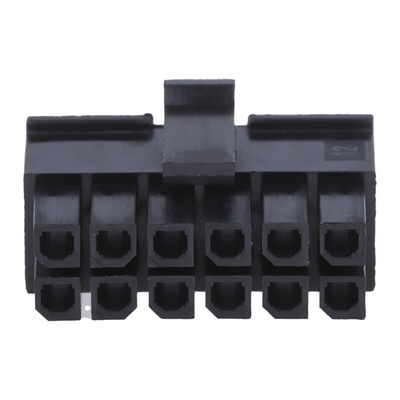

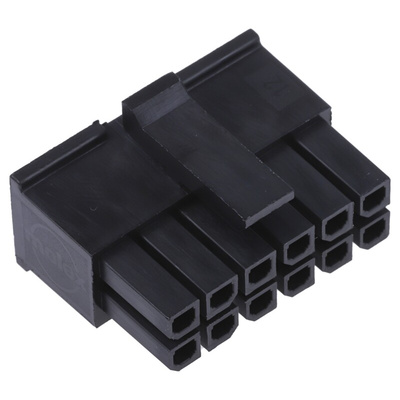

Molex Micro-Fit 3.0 Female Connector Housing, 12 Way, 3mm Pitch - 43025 Series - 43025-1200

Looking for a convenient way to link connectors to your printed circuit boards (PCBs)? This compact female connector housing from Molex has 12 contacts arranged in two rows, allowing for multiple connections while saving on space. The positive locking mode ensures a secure connection, so your wires won't come loose even in applications involving heavy vibrations. The housing also has a wide operating temperature range of -40°C to +105°C, making it suitable for use in demanding environments. You can use this unit with products in the Micro-Fit 3.0 series for wire-to-wire and wire-to-board applications, so it's a versatile choice.

• Straight body orientation for simple organisation of connections
• Pitch of 3mm for maximum space efficiency
• Compact dimensions of 18.85 (length) x 8.28 (width) x 14mm (depth) to fit into tight spaces
• Light weight of 1.282g to minimise bulk and strain on your equipment

Applications

• Commercial printing applications
• Automotive industry
• Domestic appliances

What safety features does this housing have?

The housing has fully polarised ports to ensure a proper, damage-free connection. The PET (polyethylene terephthalate) material also provides good electrical insulation to protect you and your equipment from electrical hazards.

Molex Micro-Fit 3.0 Series

Datasheet

Line Drawing

Micro-Fit+ Connector Datasheet
