43020-0200, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 2 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

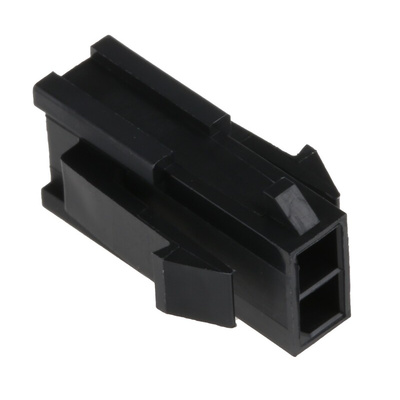

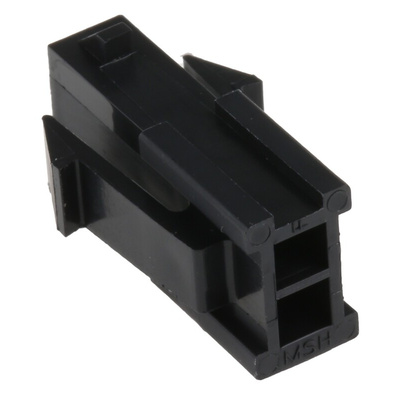

Molex Male Connector Housing, 3mm Pitch, 2 Way - Micro-Fit 3.0 Series - 43020-0200

Need a compact and reliable connector housing to make wire-to-wire or wire-to-panel connections? This 3.0mm pitch connector housing from Molex's Micro-Fit series holds two contacts and is suitable for use with crimp terminals. The housing is made from nylon for low weight, durability and reliable electrical resistance. Positive locking lets you achieve secure connections, while mounting ears make the unit suitable for panel mounting. The fully polarised orientation prevents mismating or misalignments.

Features & Benefits

• Operating temperature range of -40°C to +105°C for use in extreme environments
• Low-halogen composition reduces harmful fumes in the event of a fire

Applications

• Networking and storage systems
• Household appliances

What's a scoop-proof design?

A scoop-proof design means that the contacts are protected until the mating connectors are properly aligned. This prevents damage from occurring as a result of aggressive unaligned mating and unmating. All of Molex's connectors are built to be scoop-proof.

What are positive locking latches?

Positive locking latches snap into place and lock with an audible click so that you can be sure the parts have been successfully mated.

Molex Micro-Fit 3.0 Series

Datasheet

Line Drawing

Micro-Fit+ Connector Datasheet
