43020-0400, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 4 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

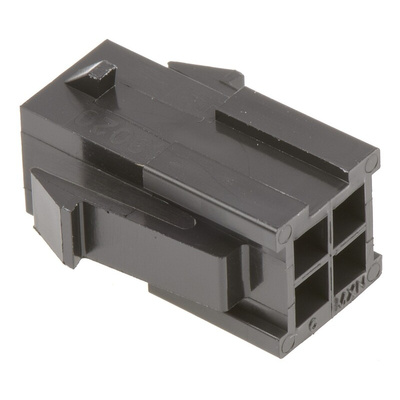

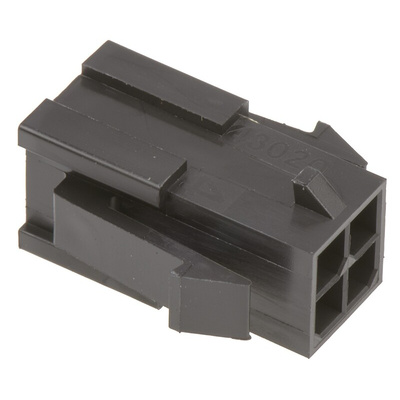

Molex Micro-Fit 3.0 Male Connector Housing, 4 Way, 3mm Pitch - 43020 Series - 43020-0400

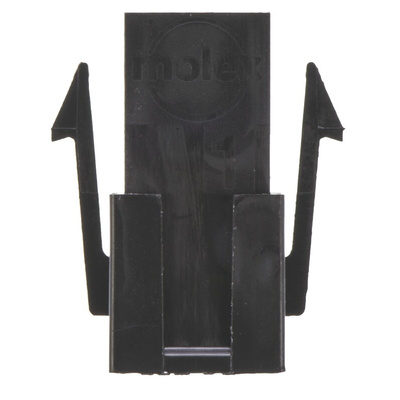

This Molex male connector housing acts as a protective containment shell for your wire-to-wire connections. Its crimp termination method provides lasting protection for your connections, minimising the risk of loose wires and electrical interference. The housing's positive locking mechanism provides additional protection against disconnection for long-lasting performance. This housing comes with mounting ears, making it simple to attach to a panel on your machinery. You can use this product with Molex's Micro-Fit 3.0 series of compact connectors.

• Maximum current of 5A per contact for use in low-current applications
• Two-row design maximises use of space
• Low halogen content to reduce the risk of toxic fumes in the event of a fire
• Compact dimensions of 6.85 (length) x 6.85 (width) x 24.77mm (depth) to save space

Applications

• Domestic appliances
• Automotive industry
• Telecommunications applications
• Solar energy

Can this housing withstand use in harsh environments?

The housing is made of a durable, impact-resistant nylon material that can withstand heavy-duty use. It's also rated for temperatures ranging from -40°C to +105°C, so it's suitable for use in extreme conditions.

Molex Micro-Fit 3.0 Series
