43020-0600, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 6 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

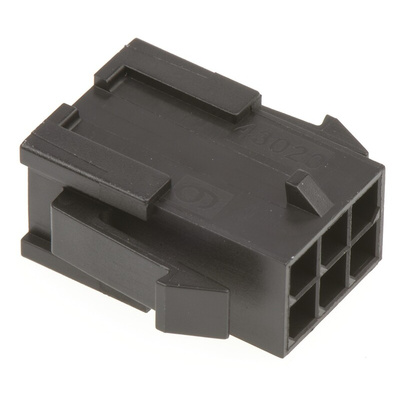

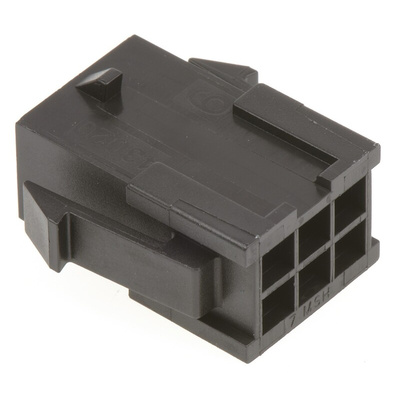

Molex 3.0 Male Connector Housing, 3mm Pitch, 6 Way - Micro-Fit 3.0 Series - 43020-0600

This 3.0mm pitch male connector from Molex's Micro-Fit 3.0 Series can accommodate up to six contacts. It's suitable for use with crimp terminals, so you can make wire-to-wire or wire-to-board connections. The polyethylene terephthalate (PET) housing is strong, lightweight and virtually shatterproof. The fully polarised orientation prevents misalignment or mismating, while positive locking lets you know when you've made a secure connection.

Features & Benefits

• Low-halogen composition reduces risk of toxic emissions during a fire
• Operating temperature range of -40°C to +105°C for demanding industrial use

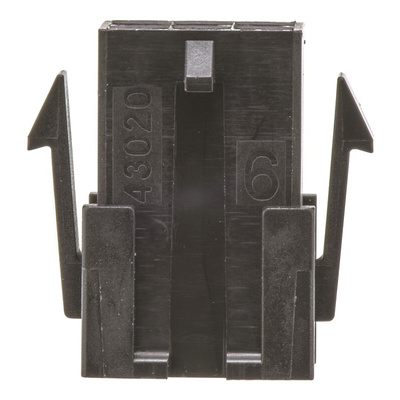

• Supplied with mounting ears for simple panel installation

Applications

• Household appliances
• Networking and storage systems
• Vending machines

What does positive locking mean?

Positive locking latches snap firmly into place when you push them together. An audible click lets you know that the parts have been successfully and correctly mated.

What's meant by 'scoop-proof' design?

A scoop-proof design means the contacts are protected until the mating connectors are properly aligned. All of Molex's connectors feature a scoop-proof design, as this prevents damage due to forceful unaligned mating and unmating.

Molex Micro-Fit 3.0 Series

Datasheet

Line Drawing

Micro-Fit+ Connector Datasheet
