43020-0800, Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 8 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

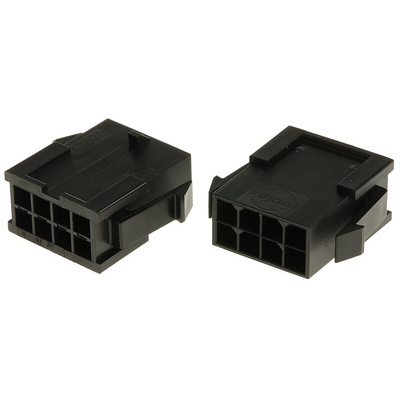

Molex Male Connector Housing, 3mm Pitch, 8 Way - Micro-Fit 3.0 Series - 43020-0800

Looking for a reliable, compact connector housing to make wire-to-wire or wire-to-panel connections? This 3.0mm pitch connector housing from Molex's Micro-Fit series is built to take eight contacts with crimp terminals, and can handle up to 5A of currrent. It has mounting ears to help with easy panel mounting, while positive locking means you can be sure you've made a secure connection. The polyethylene terephthalate (PET) housing is strong, lightweight and fire retardant.

Features & Benefits

• Operating temperature range of -40°C to +105°C makes it suitable for a wide range of tough environments
• Low-halogen composition reduces harmful fumes in the event of a fire

Applications

• Scanners
• Refrigerators
• Gaming machines

What's a scoop-proof design?

Molex connectors feature a scoop-proof design that protects the contacts until the mating connectors are properly aligned. This prevents them from being damaged by mishandling or careless mating and unmating.

What's positive locking?

Molex's positive locking latches snap firmly into place when pushed together. Listen for the click that lets you know the parts have been successfully mated.

Molex Micro-Fit 3.0 Series
