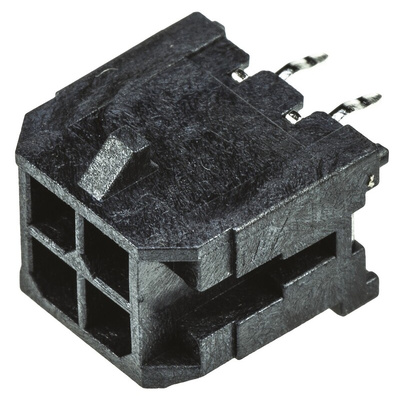

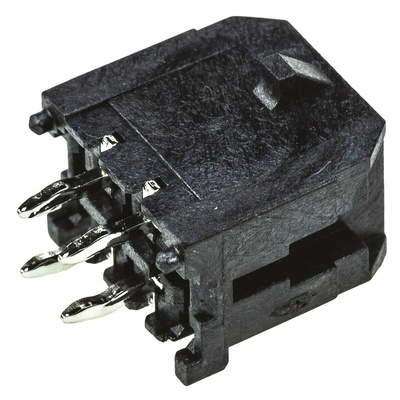

43045-0412, Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header, 4 Contact(s), 3.0mm Pitch, 2 Row(s), Shrouded

Molex Micro-Fit 3.0 3.0mm Dual Row PCB Headers with PCB Polarizing Peg, 43045 Series

Micro-Fit 3.0 3mm pitch wire to board dual row PCB headers which form part of a compact power connector system providing a low to mid-range power distribution solution. With the ability to carry up to 5A of current, Micro-Fit 3.0 connectors have one of the highest current carrying abilities in the smallest footprints available. These Micro-Fit 3.0 PCB headers incorporate positive latching in the form of a locking ramp on the housing for secure mating and to prevent accidental disconnection. The housings are made of high-temperature UL 94V-0 Liquid Crystal Polymer that can withstand temperatures of up to 265°C during the IR reflow soldering process. The through hole mounting versions of these Micro-Fit 3.0 headers are also SMT compatible which means a reduction in process requirements and costs. To help position and align these Micro-Fit 3.0 headers to the PCB board, PCB polarising pegs are incorporated into the connector design. part numbers ending in xx12, xx13 and xx14 also feature kinked solder legs for additional PCB retention. The contacts of these Micro-Fit 3.0 headers are fully isolated within the housings to reduce arcing. Tin or a choice of two thicknesses of gold contact platings are available to keep down costs.

Features and Benefits

• High current carrying capacity in a small footprint
• High temperature housings for IR reflow soldering
• Through hole versions SMT compatible
• Positive latching for secure mating connection
• Fully isolated dual beam terminals for reliable electrical performance and contact
• PCB polarising pegs for alignment and positioning on PCB
• Kinked solder legs for additional PCB retention
• Glow Wire Compliant

Product Application Information

These Micro-Fit 3.0 header connectors are suitable for use in a wide range of low to mid power applications including the following:
Military COTS (Commercial Off The Shelf)
Solar power
Consumer products (dryers, freezers, fridges, washing machines)
Data communications (routers, servers)
Medical
Telecommunications
Gaming terminals

Molex Micro-Fit 3.0 Straight PCB Header, 4 Way, 2 Rows - 43045 Series - 43045-0412

Use this robust and reliable wire-to-board Molex PCB (printed circuit board) header to establish multiple power connections to your board. The compact and space-saving design carries up to 5A of current per pin for an ideal low to mid-range power distribution solution. A locking ramp provides secure latching to ensure connectors and connections don't come loose and disrupt power transmission. The tin-plated brass contacts provide reliable conductivity as well as resistance to corrosion, so you can be certain of the unit's long-lasting performance.

• Fully isolated dual-beam terminals ensure secure contact and reliable electrical performance
• Polarised pins prevent misalignment and mismatched connections to minimise the risk of short circuits and component damage
• Kinked solder legs for improved PCB retention
• High-temperature thermoplastic housing for IR (infrared) reflow soldering

Applications

• Gaming consoles
• Solar power installations
• Medical equipment
• Data and telecommunications networks

What's the difference between a header and a connector?

A connector houses various terminals that plug into the header on your PCB. You typically solder your header onto your board, whereas you can connect and unplug your connector as needed.
