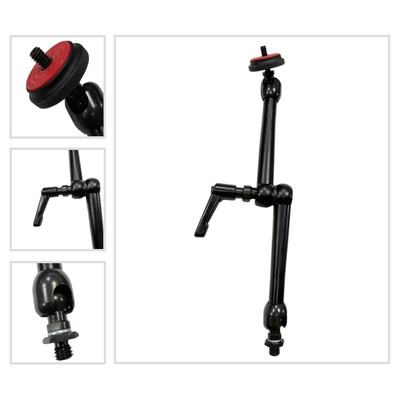

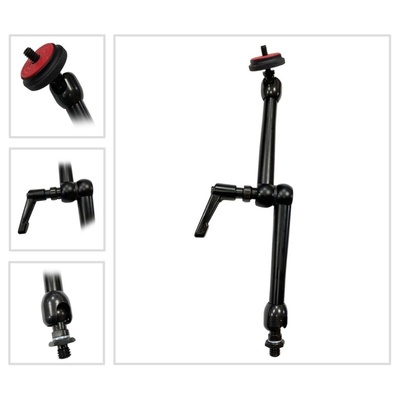

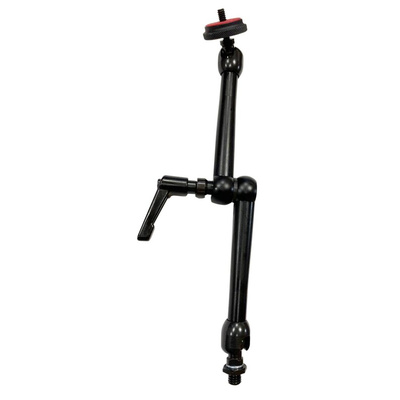

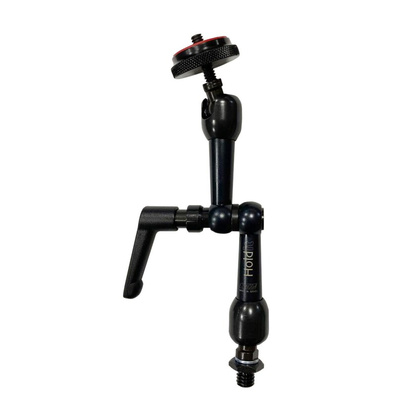

DG9038, Noga Aluminum, Steel Base & Arm

The Noga Camera range utilise a 3 jointed fully articulated holding system which provides safe and easy positioning of photographic and cine bolt on accessories such

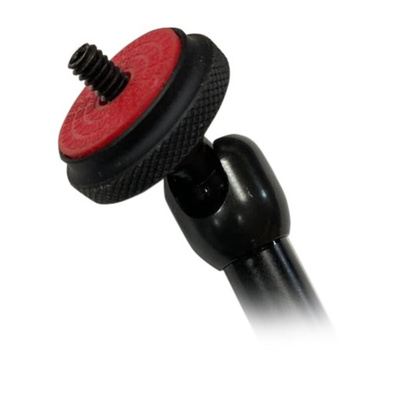

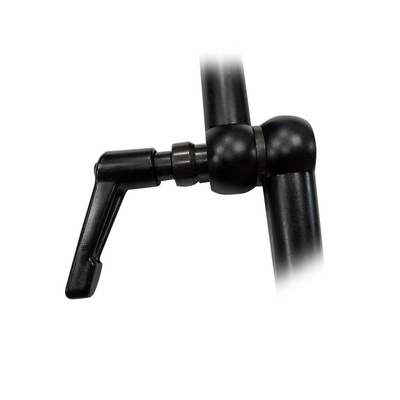

as lights and monitors. The heart of the device is a single central locking lever which locks all 3 joints simultaneously. The central locking mechanism has a smooth action and can be tightened to hold the fitted accessory firm enough to support it and allow for exact positioning before final tightening. The unit to be mounted is screwed onto the top of the arm and is securely locked using the knurled locking ring with rubber insert.

Maximum Load Weight fully extended to 4kg
Arm Weight 0.356g
Top Arm Length 110 mm
Bottom Arm Length 110 mm
OAL 220 mm
Top Male Thread (1/4)" x 20

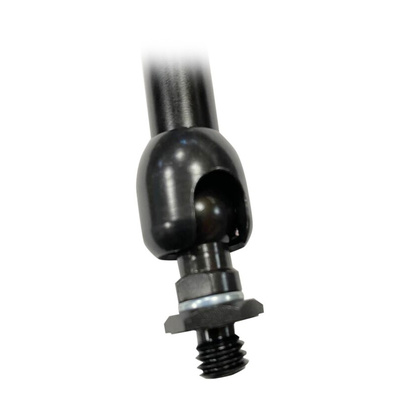

Bottom Male Thread (3/8) x 16

Datasheet - DG9038
