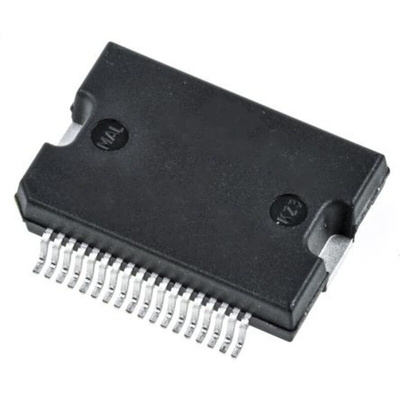

STMicroelectronics L6208PD013TR, Stepper Motor Driver IC 36-Pin, PowerSO-36

The STMicroelectronics L6208 device is a DMOS fully integrated stepper motor driver with non-dissipative overcurrent protection, realized in BCD technology, which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The device includes all the circuitry needed to drive a two phase bipolar stepper motor including: a dual DMOS full bridge, the constant off time PWM current controller that performs the chopping regulation and the phase sequence generator, that generates the stepping sequence. Available in PowerSO36 and SO24 (20 + 2 + 2) packages, the L6208 device features a non-dissipative overcurrent protection on the high-side power MOSFETs and thermal shutdown.

Operating supply voltage from 8 to 52 V
5.6 A output peak current (2.8 A RMS)
RDS(ON) 0.3 Ω typ. value at Tj = 25 °C
Operating frequency up to 100 KHz
Non-dissipative overcurrent protection
Dual independent constant off PWM current controllers
Fast/slow decay mode selection
Fast decay quasi-synchronous rectification
Decoding logic for stepper motor full and half step drive
Cross conduction protection
Thermal shutdown
Under voltage lockout
Integrated fast freewheeling diodes

Datasheet - L6208PD013TR
