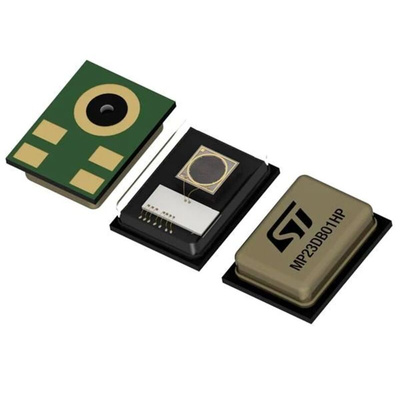

The STMicroelectronics MP23DB01HP is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface with stereo operation capability. The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process dedicated to producing audio sensors. The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.
Omnidirectional digital microphone
Very low distortion / very high AOP
135 dBSPL acoustic overload point
Multiple performance modes (sleep, low-power, performance)
Typ. current consumption
2 μA (sleep mode)
285 μA (low-power mode)
800 μA (performance mode)
Sensitivity matching
PDM single-bit output with option for stereo configuration
RHLGA package
Bottom-port design
SMD-compliant
EMI-shielded
ECOPACK, RoHS and “Green” compliant
