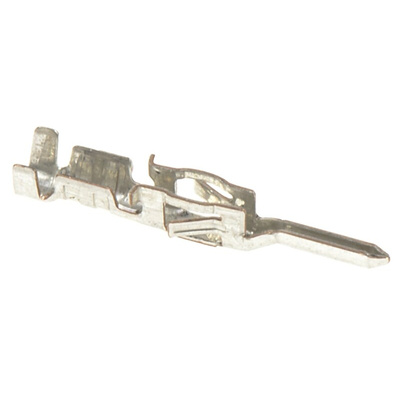

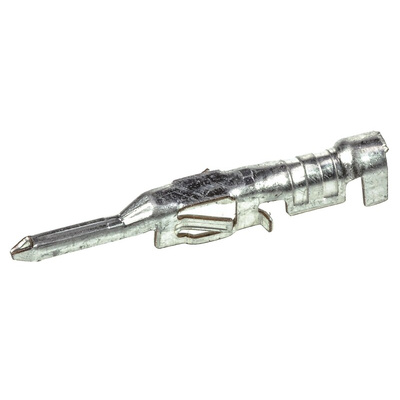

43031-0010, Molex Micro-Fit 3.0 Series Male Crimp Terminal, 30AWG Min, 26AWG Max, Контакты

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

Molex Crimp Terminal, Tin Contact Plating, 30 to 26AWG - Micro-Fit Series - 43031-0004

Need a messenger to carry signals from wires to your circuit boards? Go for this crimp terminal from Molex. It clamps and seals stranded wires for easy connection with PCB headers, meaning you don't have to touch live parts. The phosphor bronze material is highly conductive, so you can rest assured you'll get a reliable connection. Tin plating means the unit handles damp settings without corroding, giving you long-lasting service.

Features & Benefits

• Comes in a pack of 100, so there's enough to cover large-scale projects
• Current rating of 8.5A makes it the right choice for medium-duty applications

Applications

• CNC equipment
• Robotics and automation systems
• Assembly lines

What's the temperature tolerance of this terminal?

This unit handles operating temperatures between -40°C and +105°C, making it fit for use in demanding conditions.

Molex Micro-Fit 3.0 Series

Datasheet

Specification Sheet - Micro-Fit Dual Row Connector System

Line Drawing - 43031-0010
