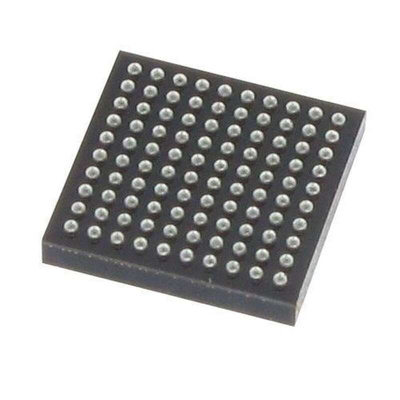

STMicroelectronics STM32H753VIH6, 32bit ARM Cortex M7 Microcontroller, STM32H7, 480MHz, 2.048 MB Flash, 100-Pin TFBGA

The STMicroelectronics STM32H753xI devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480 MHz The Cortex® -M7 core features a floating point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. STM32H753xI devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security. STM32H753xI devices incorporate high-speed embedded memories with a dual-bank Flash memory of 2 Mbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access.

4x SAIs (serial audio interface)
SPDIFRX interface
SWPMI single-wire protocol master I/F
MDIO Slave interface
2´ SD/SDIO/MMC interfaces (up to 125 MHz)
2´ CAN controllers: 2 with CAN FD, 1 with time-triggered CAN (TT-CAN)
2´ USB OTG interfaces (1FS, 1HS/FS) crystal-less solution with LPM and BCD
Ethernet MAC interface with DMA controller
HDMI-CEC
8- to 14-bit camera interface (up to 80 MHz)

Datasheet - STM32H753VIH6
