11-03-0043, Molex Crimp Extraction Tool, HANDTOOL Series, Crimp Contact, Contact size 3mm, Инструмент для извлечения

Micro-Fit 3·0 Crimp Tooling

Parallel action crimp hand tool with terminal locators and precision crimp profiles suitable for use with Micro-Fit 3·0 crimp contacts with appropriate wire sizes.,A crimp extraction tool is also available see stock no. 233-3071

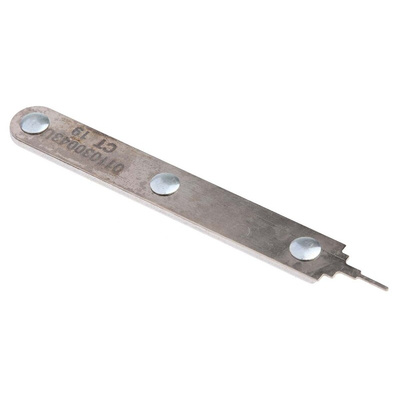

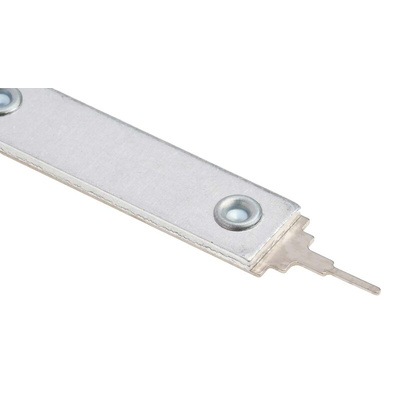

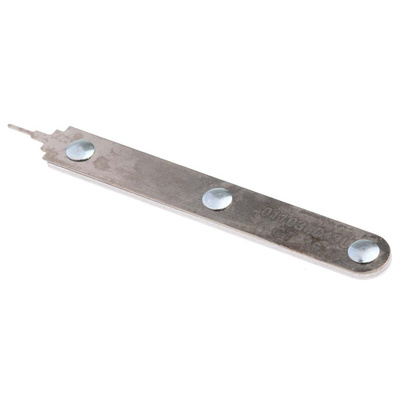

Molex HANDTOOL Crimp Extraction Tool, Contact Size 3.0 - T0201 Series - 15776

Use this professional Molex extraction tool to remove crimped contacts safely and efficiently. Its simple design lets you extract contacts from a connector without damaging either the contacts or the connector. Use it in any settings where the contact size is 3.0. You can insert this robust device directly into the connection terminal using minimal force and a twisting motion until the locking tabs are completely depressed. This will then let you extract the contact.

• Compatible with all standard 3.0 contacts for versatile use
• Compact size for efficient storage and transportation
• Expertly designed for the specific purpose, ensuring ease of use and effectiveness

Applications

• Commercial electronics
• Data networking
• IT systems

Is this tool simple to use?

Yes – simply insert the extraction tool into the terminal housing until the locking tangs have snapped out of their locked position. If the terminal locking tabs are still not totally depressed, tightly grip the wire and push it towards the extractor tool. This will completely depress the locking tabs to ensure a smooth extraction.

Molex Micro-Fit 3.0 Series

11-03-0043 Extraction Tool Instruction Sheet

Datasheet

Extraction Tool Specification Sheet
