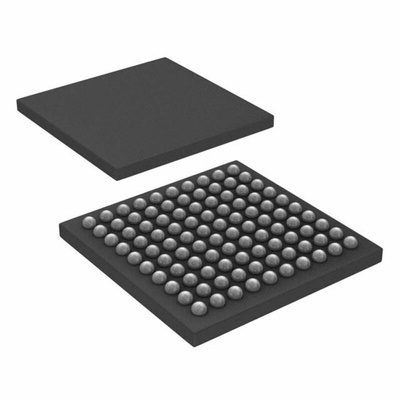

STMicroelectronics STM32L496VGY6TR, 32bit ARM Cortex M4 Microcontroller, STM32L4, 80MHz, 1.024 MB Flash, 100-Pin WLCSP

The STMicroelectronics STM32L496xx devices are ultra-low-power microcontrollers based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz The Cortex-M4 core features a Floating point unit (FPU) single precision that supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The STM32L496xx devices embed high-speed memories (up to 1 Mbyte of Flash memory, 320 Kbyte of SRAM), a flexible external memory controller (FSMC) for static memories (for devices with packages of 100 pins and more), a Quad SPI Flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

Ultra-low-power with FlexPowerControl
1.71 V to 3.6 V power supply
-40 °C to 85/125 °C temperature range
320 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
25 nA Shutdown mode (5 wakeup pins)
108 nA Standby mode (5 wakeup pins)
426 nA Standby mode with RTC
2.57 μA Stop 2 mode, 2.86 μA Stop 2 with RTC
91 μA/MHz run mode (LDO mode)
37 μA/MHz run mode (at 3.3 V SMPS mode)
Batch acquisition mode (BAM)
5 μs wakeup from Stop mode
Brown out reset (BOR) in all modes except shutdown
Interconnect matrix
