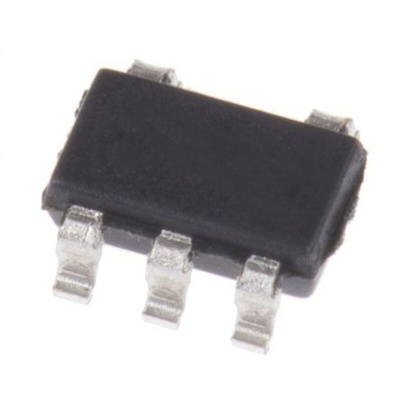

TSC888CILT Typical Single Supply Voltage, TSC888CILT STMicroelectronics, Current Sense Amplifier 5-Pin SOT23-5

The STMicroelectronics TSC888 measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The gain is internally fixed. Wide input common-mode voltage range, low quiescent current, and tiny SOT23-5 packaging make the TSC888 ideal for use in a wide variety of applications. Input common-mode and power supply voltages are independent. Common-mode voltage can range from 2.8 V to 24 V in operating conditions. Current consumption lower than 1 mA and wide supply voltage range allow to connect the power supply to either side of the current measurement shunt with minimal error.
Buffered outputIndependent supply and input common-mode voltagesWide supply voltage range: 4 to 24 VWide common-mode operating range: 2.8 V to 24 VInternally fixed gain: 20 V/V, 50 V/V or 100 V/VLow current consumption: ICC max = 1 mA
