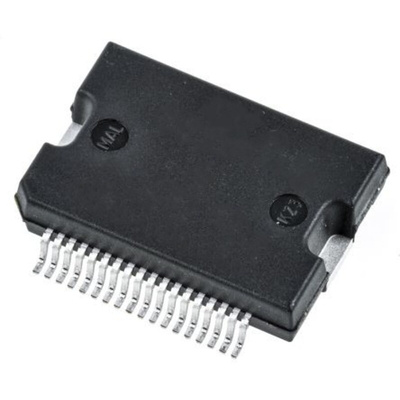

STMicroelectronics VN808TR-E 8High Side, High side Power Switch IC 36-Pin, PowerSO-36

The STMicroelectronics VN808-E are monolithic devices, realized in STMicroelectronics VI Power M0-3 technology, intended to drive any kind of load with one side connected to ground. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload conditions, the channel turns OFF and ON again automatically in order to maintain the junction temperature between TJSD and TR. If this condition causes case temperature reach TCSD,overloaded channels are turned OFF and restart only when case temperature decreases down toTCR. Non-overloaded channels continue to operate normally. The device automatically turns OFF in case of ground pin disconnection. This device is especially suitable for industrial applications conform to IEC 61131.

VCC/2 compatible input
Junction over temperature protection
Case over temperature protection for thermal independence of the channels
Current limitation
Short-circuit load protection
Under voltage shutdown
Protection against loss of ground
Very low standby current
Compliance to 61000-4-4 IEC test up to 4 kV
