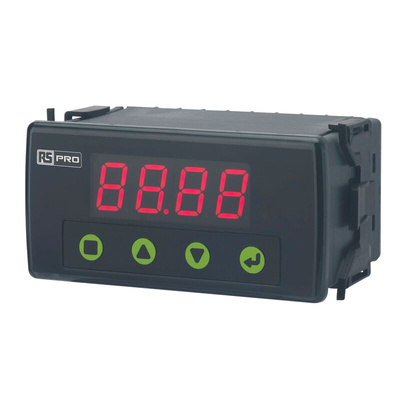

RS PRO 7-Segment Display Process Indicator for RTD & Thermocouple Inputs, 92mm x 45mm

RS PRO Multi-function Panel Meters - Process Indicators

If you need high-quality multifunction meters consider the new range of RS PRO panel meter process indicators. These devices are designed to monitor, indicate and analyse your process parameters. Process Indicators are extremely versatile with selectable inputs, output configurations, and alarm configurations.
Selectable inputs include, thermocouple (J, K, T, R & S) / RTD 3-wire (Pt-100) sensor inputs or analog inputs (0-10 VDC / 0-20mA / 4-20mA) depending on model selection which allows you to read the field inputs in different forms.

Prominent Features

• Flush Mounting Version 96 mm x 48 mm with 7 segment displays


• Thermocouple (J, K, T, R & S) / RTD 3-wire (Pt-100) sensor inputs


• Analog Inputs (0-10 VDC / 0-20mA / 4-20mA), mV (Linear) - 5 to 56mV


• Alarm Outputs, Analog (0-20mA/ 4-20mA or 0-10V/ 0-5V) & Relay 5A for alarm indication


• Configurable Band, Deviation Alarms


• °C & °F temperature unit selectable


• Short depth of 65 mm


• RS485 Communication


• IP 20 - For terminal and enclosure


• IP 55 - For Front Panel only

Features and Benefits

• Multifunction Panel Meter


• Process indicators accept inputs from Thermocouple, RTD & Analog Signals


• Properties Measured: Current, Voltage, RTD, Thermocouple


• Display shows process value


• Alarm relay indication (depending on model)


• 4 Programming keys: Exit, Enter, Scroll down, Scroll up


• Flush mounting

RS PRO Process Indicators Variants

• 180-270 VAC, Process Indicator, Analog Input (0-10 VDC / 4-20 mA): RS stock no: 233-3534


• 85-270 VAC/DC, Process Indicator, Analog Input (0-10 VDC / 4-20 mA), Thermocouple & RTD , 24 VDC sensor supply: RS stock no: 233-3535


• 85-270 VAC/DC, Process Indicator, Analog Input (0-10 VDC / 4-20 mA), Thermocouple & RTD, Alarm Outputs - Analog (0-10 V / 0-5 V, 0-20 mA / 4-20 mA) & Relay 5A for alarm indication: RS stock no: 233-3536


• 85-270 VAC/DC, Process Indicator, Analog Input (0-10 VDC / 4-20 mA), Thermocouple & RTD, Alarm Outputs - Analog (0-10 V / 0-5 V, 0-20 mA / 4-20 mA) & Relay 5A for alarm indication with RS-485 Modbus protocol: RS stock no: 233-3537


• 180-270 VAC, Process Indicator, Thermocouple & RTD: RS stock no: 233-3538

Applications

• RPM indication


• Level Indication


• Pressure indication


• Flow indication


• Temperature indication

RS PRO Datasheet

RS PRO Multi-Function Panel Meter Instruction
