RS PRO Embedded Switch Mode Power Supply (SMPS), 48V dc, 2.5A, 120W, 1 Output, 85 → 264 V ac, 120 → 370 V

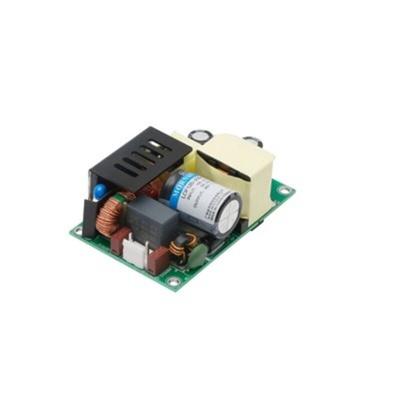

RS PRO Embedded Switch Mode Power Supply (SMPS), 48V dc, 2.5A, 120W Open Frame

Introducing the range of RS PRO Embedded Switch Mode Power Supplies, ideal as an efficient power source for most types of electronic systems. An AC-DC open frame power supply which features a universal AC input this cost-effective, high density design. These RS PRO embedded SMPS units have been designed with the highest quality and versatility in mind
The power supply meets safety standards, ensuring that it can safely be used a wide range of Industrial, Medical and Dental applications.

Features and Benefits

• Universal 85 - 264V AC Active PFC


• Compact size: 3” ´ 2” ´ 1.22”


• Efficiency up to 95%


• Stand-by power consumption. < 0.3W


• Operating temperature range - 40°C to +70°C


• Conformally coated PCB


• Low leakage current < 0.1mA


• Output short circuit, over-current,
  over-voltage protection

Applications

An embedded switch mode power supply is an electronic power supply unit that has a built-in switching regulator that can efficiently convert electrical power. They are often referred to as switch mode power converters or switchers and have become a popular addition to the electronics world, thanks to their many benefits. They can provide a cost-effective, efficient and compact power supply compared to traditional linear power supplies, while still offering optimum performance and reliability. SMPS units are often used in:
Computers and IT equipment
Medical equipment and treatments
Security systems
Industrial and civil applications
Mobile phone chargers
Instrumentation and electrical equipment
