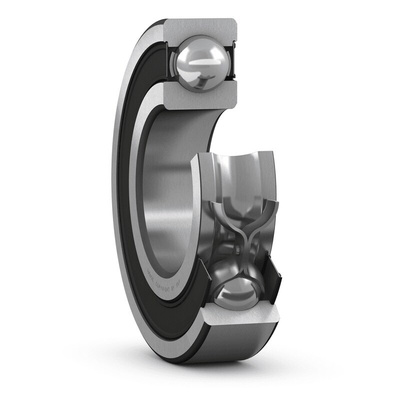

SKF 628/6-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 6mm I.D, 13mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, Sealed Ends, 6mm ID, 13mm OD - 628/6-2RS1

Give your equipment a smooth ride with this ball bearing from SKF. As it has a deep-groove design, it's able to support radial and axial loads in both directions with minimal vibration and noise. This lets you enjoy friction-free movement when machines are under pressure. A limiting speed of 53,000r/min means you can be sure it keeps up with fast-spinning applications. This low-maintenance component has non-contact sealing on both sides to ensure the rolling parts stay lubricated and dirty environments won't slow it down.

Features & Benefits

• Cylindrical bore and narrow width of 5mm makes it easy to fit on short shafts
• Compact outer diameter of 13mm means it's well-suited to small machines and appliances
• Strong and durable bearing steel construction gives it a long service life

Applications

• Consumer appliances
• Gears and pulleys
• Tool heads
• Robotics systems

What's the difference between limiting speed and reference speed?

The limiting speed of a ball bearing is the fastest it can continuously operate in a safe and reliable way without any modifications to your machinery. The reference speed is the full capacity a ball bearing is capable of without overheating. In this instance, that's 110,000r/min.
