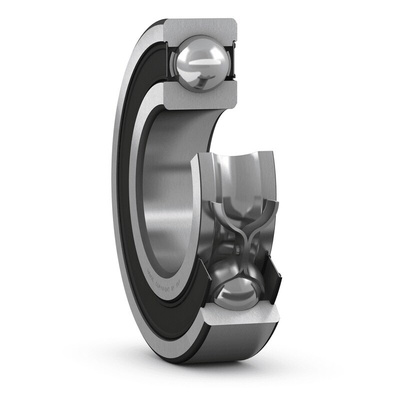

SKF 630/8-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 8mm I.D, 22mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 8mm ID, 22mm OD, 11mm Race Width - 630/8-2RS1

Get your motor running smoothly with this small but mighty deep-groove ball bearing from SKF. It's sealed on both sides and lubricated with grease to keep your system efficient with minimal maintenance. The unit carries dynamic loads up to 3.45kN and static loads up to 1.37kN to suit small, light-duty systems like domestic gardening tools. Thanks to a high limiting speed of 22,000 r/min, this bearing is more than a match for fast-paced applications.

• Light 16g weight places little strain on your system
• Bearing steel is durable and heat-resistant so won't deform under harsh conditions
• Handles both axial and radial loads, so it's a versatile option
• Integral sealing keeps out contaminants for a long service life
• Sheet metal cage is resistant to corrosion in humid settings

Applications

• Aerospace engineering
• Robotics development
• Automotive industry
• Manufacturing equipment

The SKF deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from skf in many designs, variants and sizes. It has 8 mm ID and 22 mm OD.

Why should I choose a deep-groove ball bearing over other types?

Bearing is of bearing steel
Cylindrical bore type

Choose deep-groove bearing types like this one when you need a tool that maintains its integrity even at very high speeds.
