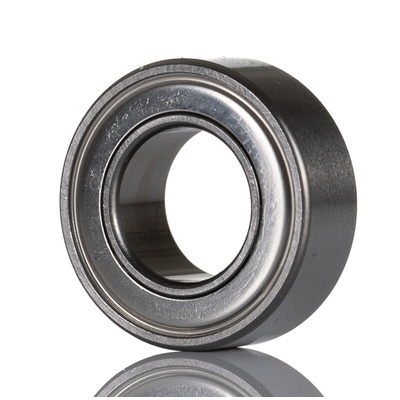

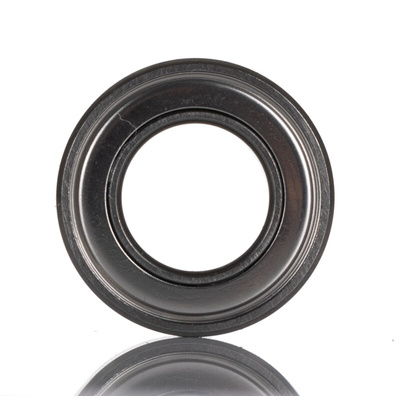

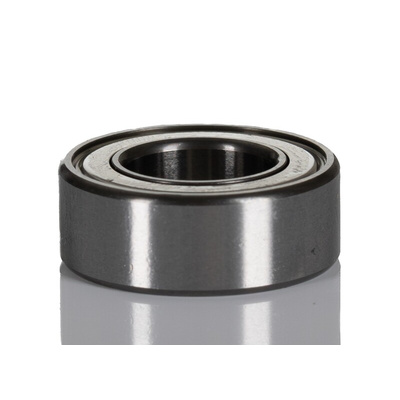

SKF 63800-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 10mm I.D, 19mm O.D

SKF Ball Bearing, Deep-Groove Bearing Type, 10mm ID, 19mm OD, 7mm Race Width - 63800-2Z

Keep your equipment running like clockwork with this deep-groove ball bearing from SKF. It has integral seals on both ends to keep grease in and dust out, so you can rely on it for a long service life. As it handles static loads up to 0.83kN and dynamic ones of 1.72kN, this unit's ideal for use in small motors. It also accommodates axial and radial loads in both directions, so it's a versatile option. To make sure the bearing is strong and won't corrode in damp settings, it's made of sturdy steel.

• Limiting speed up to 22,000 r/min to suit fast-paced applications
• Bearing steel is heat-treated to withstand high-speed operation
• Sheet metal cage reduces contact between rolling elements to minimise friction

Applications

• Automotive industry
• Manufacturing facilities
• Robotics systems

The SKF Deep groove ball bearing is particularly versatile. It has a 10mm bore diameter and 19mm outside diameter. This is suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from skf in many designs, variants and sizes.

What's the difference between limiting and reference speeds?

Single row
Cylindrical type bore
Steel type bearing

Reference speeds refer to the absolute fastest a bearing can go, but these speeds are unsustainable as they generate critical heat. Limiting speeds are the highest revolutions per minute your system can reach without hitting that critical limit, for continuous operation.
