RS PRO Digital Voltmeter DC, LED Display 5-Digits 1%

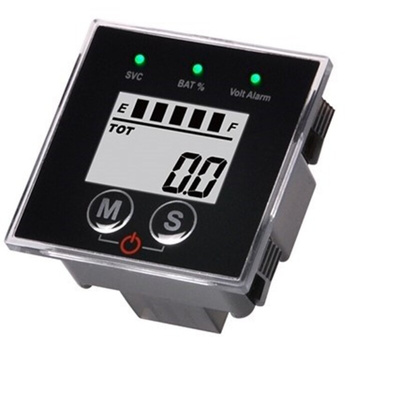

RS PRO Battery Fuel-Gauge Digital Voltmeter

RS PRO is proud to introduce this high-quality battery fuel gauge designed for measuring the remaining power in a battery by monitoring the voltage change of the device. It also has a multi-function programmable, resettable hour meter to monitor maintenance time or hire period. An LED indicates ’time-up’ and a 5V output can be used for ’time-up’ signalling. It is suitable for most lead-acid, GEL, LiFE-PO4, AGM batteries and you can also choose different voltage types.
The 5 bar LED screen shows the battery level, the resolution: 20% for each LED segment. The battery indicator provides 9 selectable types of discharge curves, programmable high and low voltage warnings, three-level backlight settings, user-off, and has an IP65 surface waterproof design to adapt to the harsh external environment.

Features and Benefits

• Battery ’fuel gauge’ with Hours Run Counter


• Suits most Battery types


• Volt: 12,24,26,48 Vdc


• Maintenance reminder visual alarm + 5V output signal


• Backlit Display


• IP65 front plate

Mechanical Specification

• Dimensions: 50 mm x 50 mm bezel x 32 mm deep (Max)


• Panel cut-out: 45 mm x 45 mm


• Panel fixing Integrated sprung ratchet clamps


• Display Window size: 40.8 mm x 18.8 mm


• Weight: 52 gm


• Connections Supplied complete with 8-pin connecter with crimp terminals

Electrical Specification

• Battery Voltage measurement: 12 / 24 / 38 /48 Vdc


• Battery types: Lead-Acid, GEL, LiFE-PO4, AGM


• Display Accuracy Voltage: 0.01V. Percentage +/- 1%


• Hour Meter Range: 0-99999 Hours


• Hour meter Accuracy: 0.1 Hour/1 Hour


• Maintenance Period Range: 0 – 2000 Hours


• Display Backlight: ON/OFF/AUTO


• Maintenance Time-Out Signal: 5.0V/50mA

Applications

• Battery fuel Gauge & Digital maintenance hour meter


• Lawnmower


• Motorcycle


• Tractor


• Pressure washers


• Fork-Lift Trucks


• Golf-Carts and Trollies
