RS PRO Digital Voltmeter DC, LED Display 1%

RS PRO Battery Fuel Gauges with Alarm Output

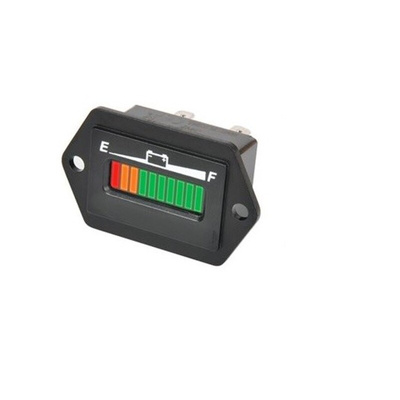

RS PRO is proud to offer a series of battery fuel gauges with alarm output. Each battery meter gauge measures the current power available within the battery by monitoring the change in voltage of the device. Our gauge instruments are commonly used with lead-acid batteries and have a 10 bar multi-colour LED display that indicates battery levels.

Key Features

A 5V/5mA voltage output can be used to activate a suitable audible or visual warning or remove the alarm. These voltmeters have a traffic light indicator status, 1 Red, 2 Yellow, and 7 Green. The display can be set to show only the LED bar corresponding to the current battery state or all LED bars up to the current battery state. An IP65 surface waterproof design is included to adapt to the harsh external environment.

Features and Benefits

• Battery ’fuel gauge’


• Accurate Measuring


• Battery-Low output signal, 5V/5mA


• Volts: 12 / 24Vdc


• Multi-Colour Segment Display


• IP65


• Single-Segment or Multi-Segment display mode

Single Segment Display

During application, if the ’C’ pin is not connected the LED light bar displays the current-voltage position in a single display.

Multi-Segment Display

Connect the ’C’ pin to a positive pole of the power supply, the LED light bar displays the current-voltage position in a multiscreen display.

Mechanical Specification

• Dimensions: 53 mm x 32 mm bezel x 27.1 mm deep (Max)


• Panel cut-out: 37 mm x 25 mm


• Panel fixing: Through panel M2 nut and bolt (Supplied)


• Display Window size: 25.5 mm x 7.6 mm


• Weight: 36 gm


• Connections: Fast-on terminals, Insulated spades supplied

Electrical Specification

• Battery Voltage measurement: 12 / 24 Vdc


• Battery types: Lead-Acid


• Display Accuracy: Voltage: 0.01V. Percentage +/- 1%


• Maintenance Time-Out Signal: 5.0V/50mA

RS PRO Battery Fuel Gauge Voltmeter Variants

• RL-BI026, Triangular mounting style, RS stock no: 233-7810


• RL-BI027, Rectangular mounting style: RS stock no: 233-7811

Applications

• Battery Powered Equipment


• Lawnmower


• Motorcycle


• Pressure washers


• Fork-Lift Trucks


• Golf-Carts and Trollies

RS PRO Datasheet
