3359309, DRAEGER Portable Gas Detector for Carbon Monoxide, Hydrogen Sulphide, Methane, Oxygen Detection, ATEX Approved

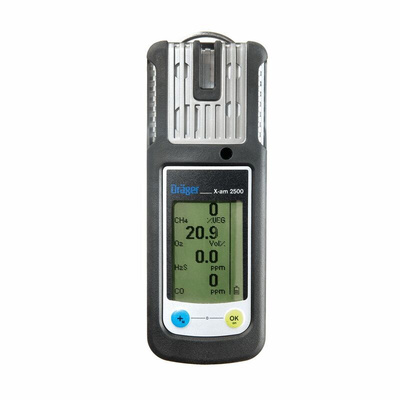

Dräger X-am® 2500 Multi-Gas Detector

The Dräger X-am® 2500 was designed for use as personal protection. The 1 to 4 gas detector reliably detects combustible gases and vapours, as well as O2, CO, NO2, SO2 and H2S. Reliable and fully mature measuring technology, durable sensors and easy handling guarantee a high degree of safety with extremely low operating costs.

Its sensitivity to flammable gases and vapours is tested in accordance with the technical approval for measuring IEC/EN 60079-29-1 from methane to nonane. This approval also demonstrates the suitability of this instrument for primary explosion protection, e.g., for use in refineries and in the chemical industry.

Features and Benefits

Durable electrochemical sensors - high performance sensors for CO, H2S, O2, SO2 and NO2 gases enable safe use in industry, mining and in refineries
CO and H2S sensors have a long service life of more than 5 years which can reduce operating costs
Maximum safety - has Ex approval for zone 0, designed for very high user safety in areas subject to explosion hazard
Functional design - ensures that gas can enter from above and from the side
Diffusion or pump for tanks and shafts or when searching for leaks
Power supply - alkaline batteries or rechargeable NiMH batteries.
Poison resistant ex sensor - high resistance to silicone and hydrogen sulphide
Maintenance - fast, easy, inexpensive
Ergonomic and robust
Practical two button control panel and easy menu navigation
Integrated protective rubber coating and sensors provide additional safety in case of impacts or vibrations
IP67 rating - water and dust resistant

Supplied with/Kit contains:

X-am 2500 / Battery / Power Pack/Charger

Approvals/Certification

ATEX
IECEx
CSA (Canada & USA)
Performance approval to:
EN 50104 (2002) + A1(2004) O2
EN 45544 CO & H2S
EN 60079-29-1:2007 Methane to nonane
CE mark
MED
EAC

Datasheet - 3359309
