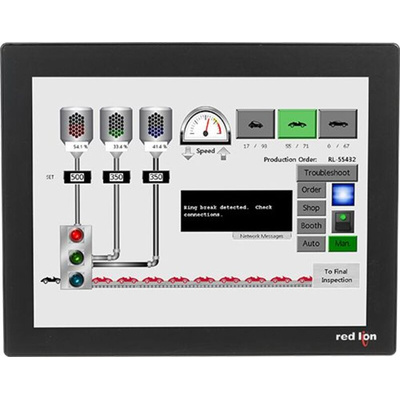

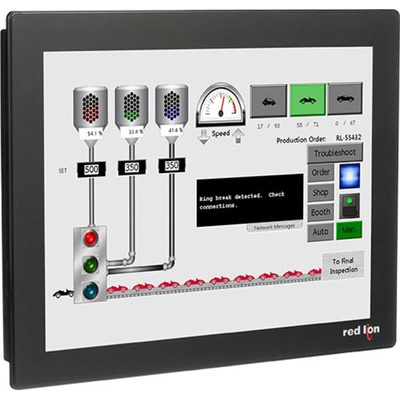

CR30001500000420, Red Lion CR3000 Series TFT Touch Screen HMI - 15 in, TFT Display

The Red Lion CR3000 series is the perfect solution for applications that require the operator to monitor and control more than just a single device. With up to four serial ports and two Ethernet ports, these HMI displays can connect to multiple serial and Ethernet devices simultaneously, including PLCs, variable frequency drives, bar code scanners, etc. The CR3000 performs the functions of a multiple protocol converter, using up to four high-speed serial communications ports and one or two 10/100 Base-TX Ethernet ports.

Configured using crimson 3.1 software
Three or four isolated serial communication ports, (2 RS-232 and 1 or 2 RS-422/485) - model dependent
One or two 10 base t/100 base-TX Ethernet ports
Communicate with up to ten protocols simultaneously
Accepts one expansion communication module to add can open, J1939, Profibus, device net and more
One usb device port to load the unit’s configuration or transfer data to and from a PC
SD card socket for loading database in the field
Industrial TFT LCD colour display
NEMA 4X/IP66 front panel
Three front panel led indicators
Power unit from 10-30 Vdc supply
Resistive analogue touchscreen

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Datasheet - CR30001500000420
