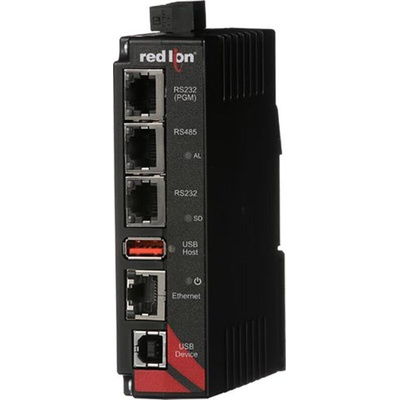

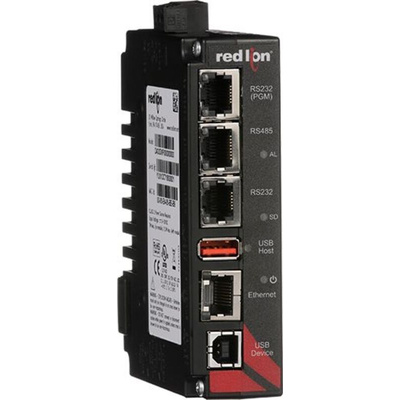

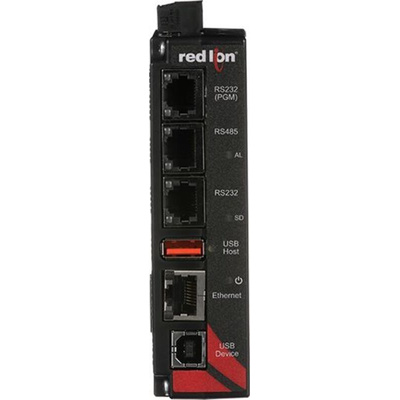

DA30D0F000000000, Red Lion DA30D Data Acquisition, Ethernet, RS232, USB

DA30D HIGH PERFORMANCE PROTOCOL CONVERTER AND DATA ACQUISITION SYSTEM WITH DATA LOGGER, WEB SERVER AND VIRTUAL HMI

Industry-leading protocol conversion

•Communicate with over 300 protocols
•Easily convert between serial, USB and Ethernet devices
•Manage multi-vendor environments with ease

Powerful Integration Capabilities

•Built-in MQTT connectors accelerate IIoT projects with point-and-click simplicity
oGoogle Cloud
oAmazon AWS
oMicrosoft Azure
oSparkplug
oInductive Automation Ignition!
oUbidots
•Embedded OPC UA server functionality eliminates need for separate system hardware
•OPC UA Client Driver
•OPC UA Historical Access
•Store and Forward Buffering for Cloud Connectors
•SQL queries feature simplifies batch and recipe management
•Built-in data, event and security logging with cryptographic signature support enhances troubleshooting and helps meet regulatory requirements

Advanced Web Server

•Provides remote access and control
•Responsive design supporting up to 16.7M colors with full screen display option ideal for tablet or mobile viewing
•Supports HTTPS operation with the provision of certificates, HTTP redirect, CSS and JavaScript
•Three virtual HMI resolutions to choose from:
o480x272
o800x480
o1280x720

Connectivity

•1 10/100 Ethernet port
•2 RS-232 serial ports
•1 RS-485 serial port
•1 USB host port
•1 USB device port for upload/download
•Expansion port for select add-on network modules

Other Features

•10-30 VDC operation
•SD card slot for data logging and database upload/download
•Configured using Crimson® 3.1 software
•-10 to 50 C
•30 g Shock
•2 g Vibration

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Datasheet - DA30D0F000000000
