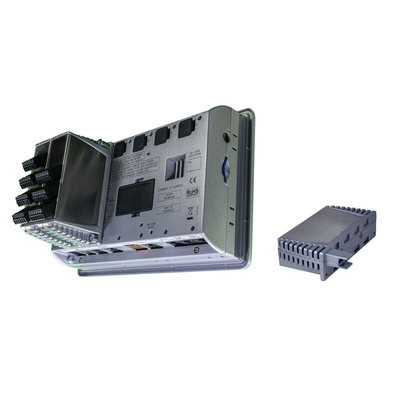

GMINI800, Red Lion Display Module Crimson, Window For Use With HMI Graphite and GMTC Series Products

The Red Lion GMINI is 16-bit analogue input modules designed for use with the Graphite products. These modules provide a means of high-density signal measurement for data acquisition applications. The GMTC module accepts a wide range of thermocouple types, while the GMRTD accepts various RTD inputs. The GMINI and GMINV accept 0/4-20 mA and ±10 V process signals, respectively.

Dedicated high density input modules for the graphite products
Models available to accept ±10 v, 0/4-20 mA, thermocouple and rtd inputs
±10 V and 0/4-20 mA input versions fully scalable
Unused inputs can be disabled to increase overall reading rate
Ideal for data-acquisition applications

Datasheet - GMINI800
