EVAL1ED020I12B2TOBO1, Infineon EVAL-1ED020I12-B2 IGBT Gate Driver for 1ED020I12-B2, 1ED020I12-F2 for Motor Control & Drives, Power

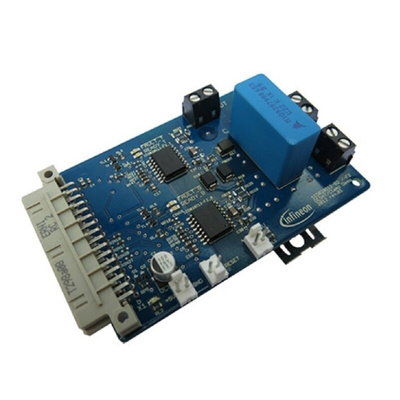

Evaluation Board for 1200 V 1ED020I12-B2 single high-side gate driver IC

This gate driver evaluation board was developed to show the functionalities and key features of the IGBT gate driver 1ED020I12-B2 (applied also to 1ED020I12-F2) galvanic isolated single channel IGBT driver IC with CT technology for 600V/1200V IGBTs.
Summary of Features

• 1200V coreless transformer isolated driver ICs


• 2 A rail-to-rail outputs


• Protection function


• V(cesat)-detection


• Active Miller Clamp

• Space saving package


• Improved energy efficiency

EVAL-1ED020I12-B2
Applications: UPS
Board Type: Evaluation Board
Dimensions: 85x55
Family: Gate Driver ; IGBT Modules
Frequency min max: 0 kHz 20 kHz
Input Type: DC
Interfaces: Others
Mounting: Other
Output Current min max: 0 A 25 A
Output Current (Source): 2 A
Output Current (Sink): 2 A
Output Voltage min max: 15 V 600 V
Pout min max: 0 W 15000 W
Product Description: Evaluation Board for 1ED020I12-B2 - Galvanic isolated single channel IGBT driver IC with CT technology for 600V/1200V IGBTs.
Product Name: EVAL-1ED020I12-B2
Qualification: Industrial
Sub Application: Power Management ; UPS
Supply Voltage min max: 15 V 600 V
Target Application: Industrial ; Motor Control & Drives ; Power Supplies ; Smart Grid ; Solar Energy Systems
Topology: Half Bridge

Datasheet - EVAL1ED020I12B2TOBO1
