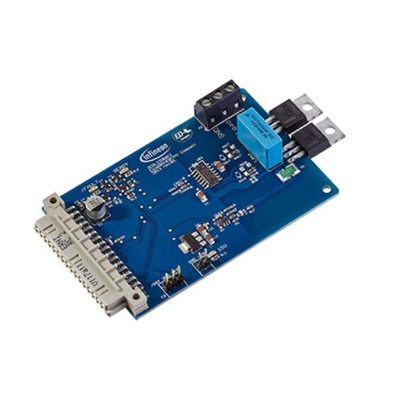

EVAL2EDL23I06PJTOBO1, Infineon EVAL-2EDL23I06PJ IGBT Gate Driver for 2EDL23I06PJ for Air Conditioners, Drives, Fans, Pumps

Evaluation Board for 600V Half Bridge Gate Driver IC

This gate driver evaluation board was developed to show the functionalities and key features of the 2EDL23I06PJ 600V half bridge gate driver IC with LS-SOI technology to control IGBTs.

Summary of Features

• Overcurrent comparator


• Enable function, Fault indicator


• Individual control circuits for both outputs


• Filtered detection of under voltage supply


• All inputs clamped by diodes


• Off line gate clamping function


• Asymmetric undervoltage lockout thresholds for high side and low side


• Insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology


• Ultra fast bootstrap diode

Benefits

• Space saving package


• Improved energy efficiency

Parametrics EVAL-2EDL23I06PJ
Applications: Air conditioners ; Drives ; Fans ; Pumps
Board Type: Evaluation Board
Dimensions: 85x55
Family: Gate Driver ; IGBT Discrete
Frequency min max: 0 kHz 20 kHz
Input Type: DC
Interfaces: Others
Mounting: Through Hole
Output Current min max: 0 A 20 A
Output Voltage min max: 100 V 400 V
Pout min max: 0 W 8000 W
Product Description: Evaluation Board for 2EDL23I06PJ - Optimized 600V half bridge gate driver IC with LS-SOI technology to control THT Highspeed3-IGBT IKP20N60H3 in TO220 package.
Product Name: EVAL-2EDL23I06PJ
Qualification: Industrial
Sub Application: Air conditioners ; Drives ; Fans ; Power Management ; Pumps
Supply Voltage min max: 13 V 17.5 V
Target Application: Motor Control & Drives ; Power Supplies
Topology: Half Bridge

Datasheet - EVAL2EDL23I06PJTOBO1
