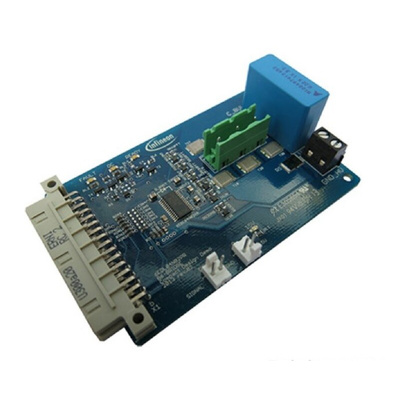

EVAL6EDL04N02PRTOBO1, Infineon EVAL-6EDL04N02PR MOSFET Gate Driver for 6EDL04N02PR for Fan, Power Tools

Evaluation Board for 200 V Three-Phase Gate Driver IC

This gate driver evaluation board was developed to show the functionalities and key features of the 6EDL04N02PR Full bridge 3-Phase gate driver IC with LS-SOI technology to control power devices like MOS-transistors or 180 V IGBTs.

Summary of Features

• Thin-film-SOI-technology


• Maximm blocking voltage +200V


• Separate control circuits for all six drivers


• CMOS and LSTTL compatible input (negative logic)


• Signal interlocking of every phase to prevent cross-conduction


• Detection of over current and under voltage supply

Benefits

• Space saving package


• Improved energy efficiency

Parametrics EVAL-6EDL04N02PR
Applications: Fan ; Power Tools
Board Type: Evaluation Board
Dimensions: 85x55
Family: Gate Driver ; IGBT Discrete ; MOSFET
Frequency min max: 0 kHz 200 kHz
Input Type: DC
Interfaces: Others
Mounting: Surface Mount (SMD)
Output Current min max: 0 A 10 A
Output Current (Source): 0.165 A
Output Current (Sink): 0.375 A
Output Voltage min max: 15 V 80 V
Pout min max: 0 W 800 W
Product Description: Evaluation Board for 6EDL04N02PR - Full bridge 3 Phase gate driver IC with LS-SOI technology to control power devices like MOS-transistors or 180V IGBTs.
Product Name: EVAL-6EDL04N02PR
Qualification: Industrial
Sub Application: Fan ; Power Tools ; Welding
Supply Voltage min max: 15 V 80 V
Target Application: Industrial ; Motor Control & Drives
Topology: 3-Phase Inverter
