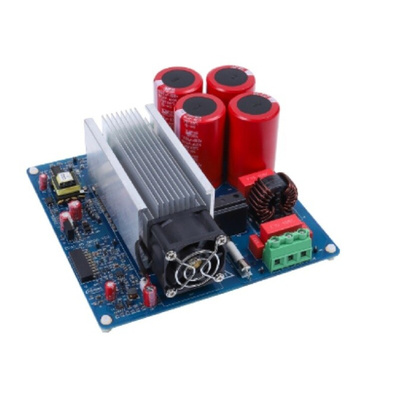

EVALM1IM535TOBO1, Infineon EVAL-M1-IM535 Microcontroller for IM535-U6D for Motor Control & Drives

Evaluation board for CIPOS™ Mini, features 600 V IM535-U6D

The EVAL-M1-IM535 is an evaluation board to support customers during their first steps of designing applications with IM535-U6D Intelligent Power Module (IPM). As a part of iMOTION™ Modular Application Design Kit, the combination of this power board and matching control board EVAL-M1-101T creates an inverter system for evaluating the latest Infineon technologies. It features and demonstrates our CIPOS™ Mini IPM technology and Advanced Motion Control Engine (MCE 2.0) technology for permanent magnet motors drive over the full speed range.

IM535-U6D, is one of the CIPOS™ Mini IPMs, which integrates a 3-phase inverter stage in a DIP 36x21D package. It incorporates TRENCHSTOP™ IGBT and anti-parallel diodes together with optimized SOI gate driver along with excellent thermal conduction and electrical isolation.

Summary of Features

Power stage to drive 3-phase motor

600 V blocking voltage IGBT

3 KW output power

Standardized iMOTION™ MADK M1 platform interface

CIPOS™ Mini IPM (30A)

ROHS compliant

Benefits

Evaluate IM535-U6D

Easy to start evaluation – shorter cycle time to final product

UL certified package and temperature sensor

Smaller foot print to allow smaller PCB

High efficiency to save energy

Parametrics\tEVAL-M1-IM535
Board Type\tEvaluation Board
Dimensions\t166x166
Family\tIGBT Modules ; Intelligent Power Modules (IPM) ; iMOTION™ Motor Control ICs ; Microcontroller
Input Type\tAC
Interfaces\tUSB
Motor Power max\t3000 W
Output Voltage\t140 V
Pout max\t3000 W
Product Description\tMADK evaluation board featuring IM535-U6D CIPOS™ Mini 600 V, 30 A three-phase TRENCHSTOP™ IGBT based intelligent power module with open emitter in DIP 36x21D package.
Product Name\tEVAL-M1-IM535
Qualification\tIndustrial
Sub Application\tPumps ; Fans ; Drives ; HVAC
Supply Voltage max\t265 V
Target Application\tMotor Control & Drives
Topology\t3-Phase Motor

Datasheet - EVALM1IM535TOBO1
