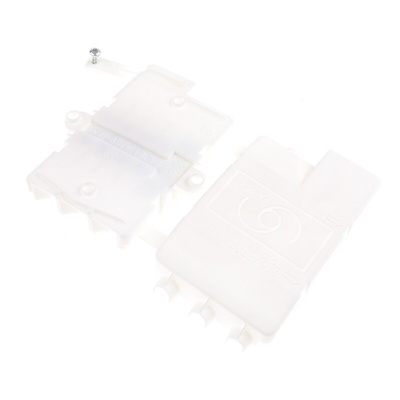

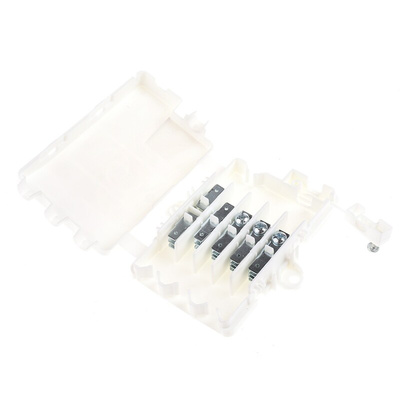

RS PRO Non-Fused Terminal Block, 6-Way, 20A, 22 → 12 AWG Wire, Screw Down Termination

RS PRO 6 Way Non-Fused Terminal Block, 22 to 12 AWG, 20 A, Screw Down Terminals, Nylon, 450 V

This RS PRO terminal block enables you to safely and securely connect two or more wires and establish an uninterrupted electrical current between different circuits. Use it to ground and isolate wires to protect your components and prevent electrical shocks.
The cable grip ports ensure your wires stay in place and don't tangle so that you can neatly connect the outgoing cables to your components. Screw cable clamps firmly attach wires so that they don't come loose when the box is bumped or moved. The block is made from self-extinguishing polyamide (PA) which means that it can withstand temperatures of up to +125°C and will soon extinguish if ignited to prevent the spread of fires.
This terminal box is Restriction of Hazardous Substances (RoHS) certified and contains only minimal amounts of any hazardous materials. You can use this product for industrial, commercial and domestic purposes.

Features and Benefits

• Current rating of 20 A
• Not fused
• Nylon material
• Maximum operating temperature of +85°C
• Minimum operating temperature of -5°C
• Six ways
• Screw down termination method
• Terminal box type
• Voltage rating of 450 V
• Wire size of 22 to 12 AWG (American Wire Gauge)
