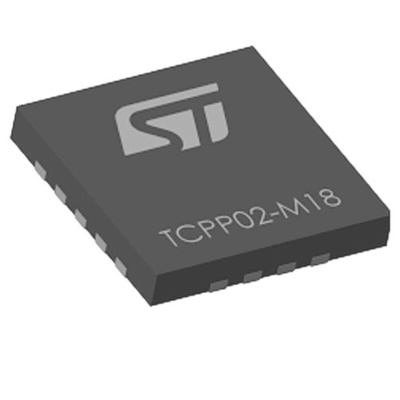

STMicroelectronics TCPP02-M18, USB Controller, USB C, 18-Pin 18-QFN

The STMicroelectronics USB type-C protection for source application is a MCU companion chip enabling cost-effective USB-C source solution. It provides protections and functionalities to safely comply with the USB-C specification. It features 24 V tolerant ESD protection as per IEC61000-4-2 level 4 on USB type-C connector communication channel pins (CC). Also, it provides overvoltage protection on CC1 and CC2 pins when these pins are subjected to short circuit with the VBUS pin that may happen when removing the USB type-C cable from its receptacle.

Externally programmable VBUS over current protection (OCP)
Integrated charge pump and gate driver for external N-channel MOSFET
VBUS current sense and amplifier with analog output
Integrated discharge on VBUS and VCONN
Over temperature protection
Over voltage protection (OVP) on CC lines against short-to-VBUS
VCONN OCP (100 mW max), OVP (6 V max)
ESD protection for CC1, CC2, compliant with IEC 61000-4-2 Level 4 (±8 kV contact discharge, ±15 kV air discharge)
Compliant with PPS (programmable power supply)
I2C communication, with two I2C addresses available
Junction temperature from -40 °C to 125 °C
Compliant with USB-C power delivery standard 3.1, standard power range (SPR), up to 100 W
ECOPACK2 compliant
